NOTES:

Part #	Number on image	Usage Notes
401-000-025	11	Loctek Roller Retention system fitted to All NZ manufactured Pegasus S4 / X-Wam S4 starting Approx Feb 2018 mowers manufactured from : Serial # onwards 727-493-400-0058 & 727-610-400-0066 Painted, Serial # 727-493-410-0001 & 727-610-410-0065 Galv X-Wam Serial numbers 750-105-400-0006 Painted and 750-105-410-0013 Galv Upgrade kits are also available,the kits contain all components and instructions required to upgrade. Upgrade kit part numbers are 808-000-028 for 493 Pegasus and 808-000-029 for 610 Pegasus.
414-000-076	15	Loctek Roller Retention system fitted to All NZ manufactured Pegasus S4 / X-Wam S4 starting Approx Feb 2018 mowers manufactured from : Serial # onwards 727-493-400-0058 & 727-610-400-0066 Painted, Serial # 727-493-410-0001 & 727-610-410-0065 Galv X-Wam Serial numbers 750-105-400-0006 Painted and 750-105-410-0013 Galv Upgrade kits are also available,the kits contain all components and instructions required to upgrade. Upgrade kit part numbers are 808-000-028 for 493 Pegasus and 808-000-029 for 610 Pegasus.
414-000-092	16	Loctek Roller Retention system fitted to All NZ manufactured Pegasus S4 / X-Wam S4 starting Approx Feb 2018 mowers manufactured from : Serial # onwards 727-493-400-0058 & 727-610-400-0066 Painted, Serial # 727-493-410-0001 & 727-610-410-0065 Galv X-Wam Serial numbers 750-105-400-0006 Painted and 750-105-410-0013 Galv Upgrade kits are also available,the kits contain all components and instructions required to upgrade. Upgrade kit part numbers are 808-000-028 for 493 Pegasus and 808-000-029 for 610 Pegasus.
412-000-286	18	Loctek Roller Retention system fitted to All NZ manufactured Pegasus S4 / X-Wam S4 starting Approx Feb 2018 mowers manufactured from : Serial # onwards 727-493-400-0058 & 727-610-400-0066 Painted, Serial # 727-493-410-0001 & 727-610-410-0065 Galv X-Wam Serial numbers 750-105-400-0006 Painted and 750-105-410-0013 Galv Upgrade kits are also available,the kits contain all components and instructions required to upgrade. Upgrade kit part numbers are 808-000-028 for 493 Pegasus and 808-000-029 for 610 Pegasus.
412-000-287	19	Loctek Roller Retention system fitted to All NZ manufactured Pegasus S4 / X-Wam S4 starting Approx Feb 2018 mowers manufactured from : Serial # onwards 727-493-400-0058 & 727-610-400-0066 Painted, Serial # 727-493-410-0001 & 727-610-410-0065 Galv X-Wam Serial numbers 750-105-400-0006 Painted and 750-105-410-0013 Galv Upgrade kits are also available,the kits contain all components and instructions required to upgrade. Upgrade kit part numbers are 808-000-028 for 493 Pegasus and 808-000-029 for 610 Pegasus.
404-320-122	22	Roller Scraper available as an option

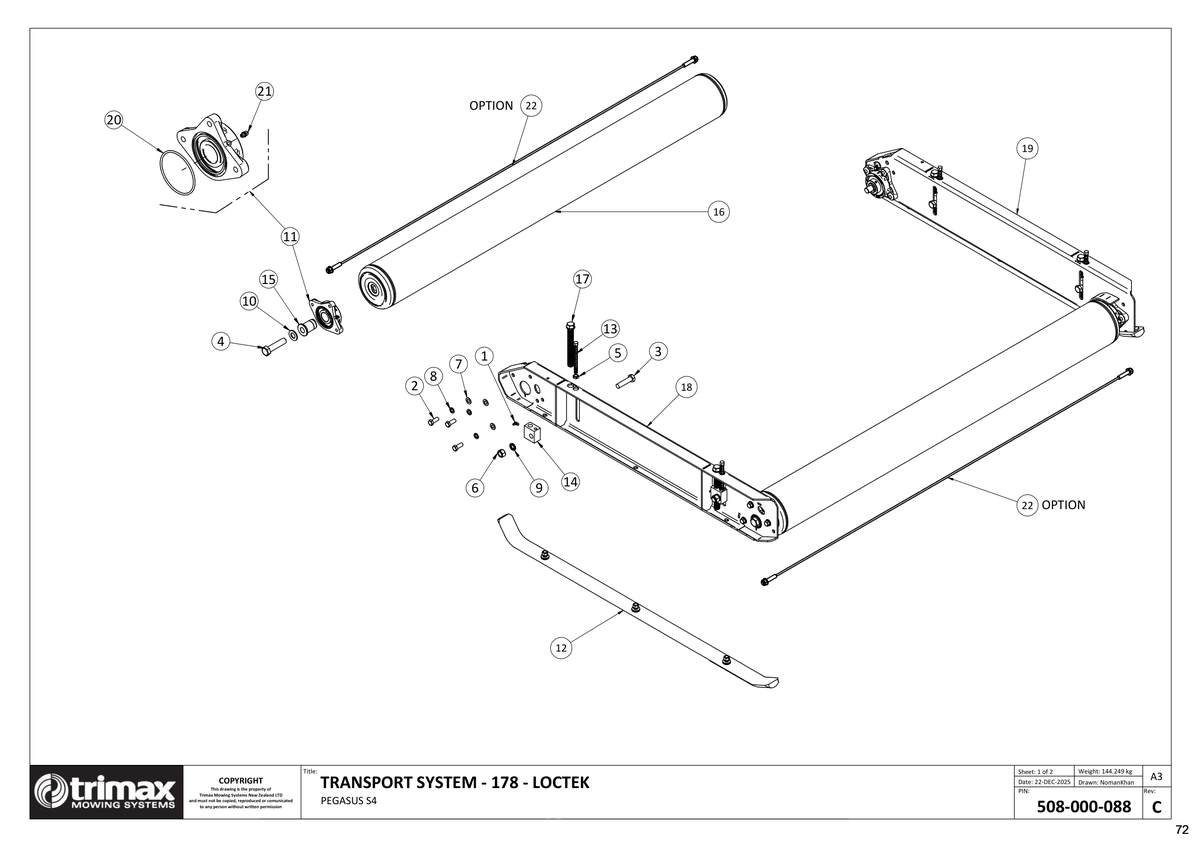

727 - Pegasus S4 493 - Transport System 178 - Loctek

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	$6.76
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	$14.19
5	Nut - Half 307-212-023 More Info >	$1.13
6	Nut - Plain 307-216-013 More Info >	$1.61
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
11	Roller Bearing Assembly - TriBolt - Trimax Specification i See notes section for usage notes on this part 401-000-025 More Info >	$355.00
12	Skid Assembly - Anti-Bounce 412-000-148 More Info >	$250.00
13	Height Indicator - Metric 412-000-256 More Info >	$37.45
14	Height Adjuster Block 412-000-279 More Info >	$86.67
15	Roller Stub Sleeve - LocTek - i See notes section for usage notes on this part 414-000-076 More Info >	$59.00
16	Roller Weldment - Loctek 178 i See notes section for usage notes on this part 414-000-092 More Info >	$846.00
17	Height Adjuster Rod - RapidSet 450-000-126 More Info >	$70.00
18	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-286 More Info >	$663.00
19	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-287 More Info >	$663.00
20	O Ring 450-000-055 More Info >	$4.22
21	Grease Nipple - Trimax Specification 208-442-620 More Info >	$4.47
22	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	$80.00
