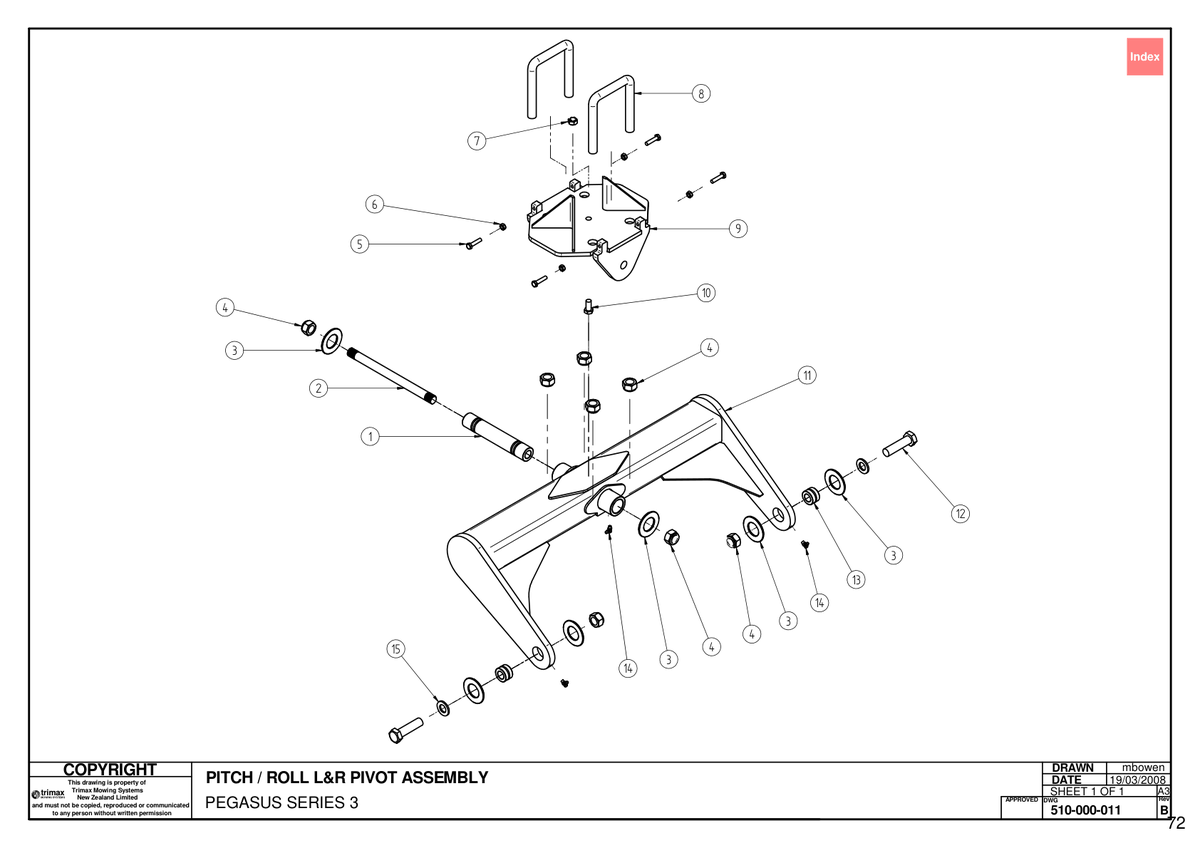

727 - Pegasus S3 - PITCH / ROLL LH & RH PIVOT ASSY 510-000-011

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Sleeve - Pitch Tube 402-000-010 More Info >	$216.00
2	Pin - Pitch Pivot 419-840-450 More Info >	$50.00
3	Thrust Washer 402-840-520 More Info >	$48.00
4	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
5	Set Screw 313-208-353 More Info >	Price on Request
6	Nut - Plain 307-208-013 More Info >	Price on Request
7	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
8	U-Bolt 215-840-400 More Info >	$111.28
9	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	$523.73
10	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	$2.93
11	Side Float Beam Weldment 418-840-070 More Info >	$1,328.24
12	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	$4.82
13	Hardened Bush 402-840-550 More Info >	$69.00
14	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
15	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
