NOTES:

Part #	Number on image	Usage Notes
214-446-280	2	Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025
404-000-004	3	Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025

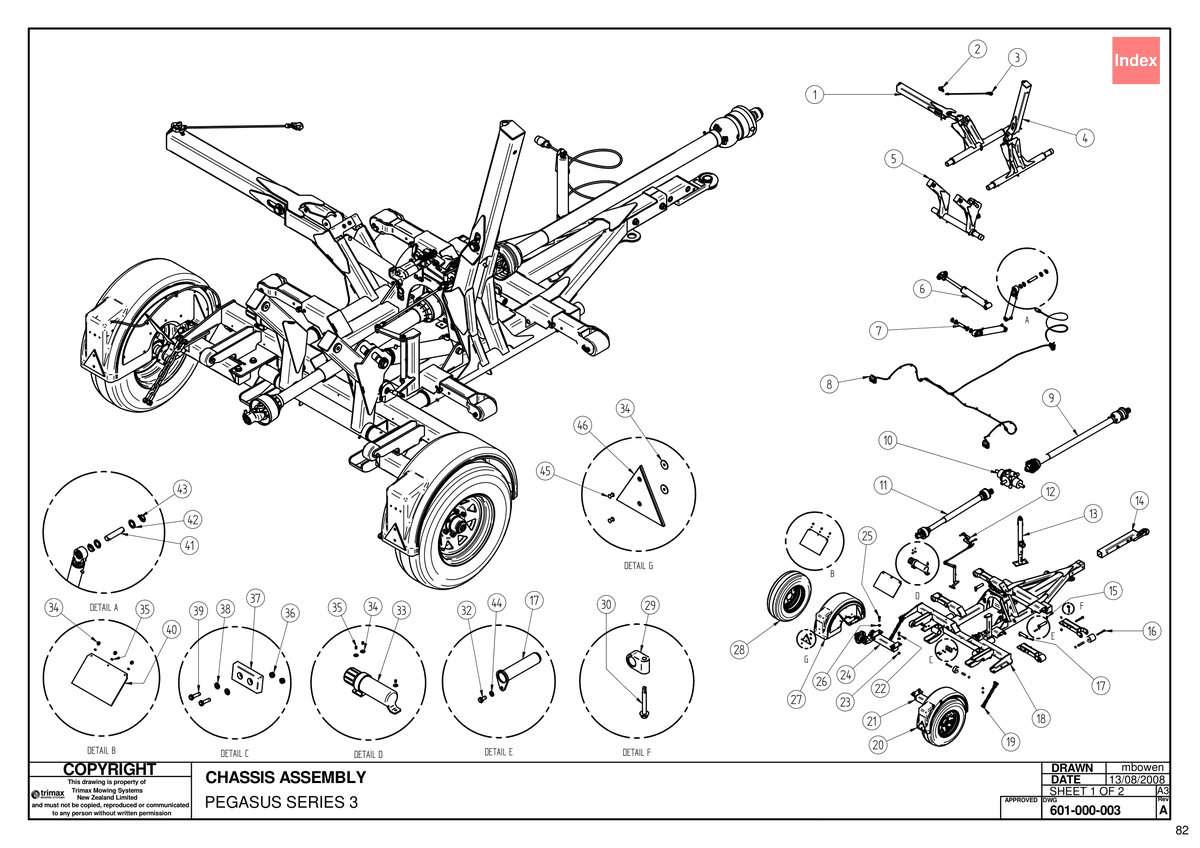

727 - Pegasus S3 - CHASSIS ASSY. - 601-000-003

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
2	D-Shackle i See notes section for usage notes on this part 214-446-280 More Info >	$9.13
3	Cable i See notes section for usage notes on this part 404-000-004 More Info >	$72.97
6	Lift Ram Assembly 409-845-200 More Info >	$2,122.13
7	Pin - Hydraulic Cylinder 419-845-550 More Info >	$82.44
9	PTO Shaft Wide Angle 406-340-890 More Info >	$1,926.00
11	PTO Shaft 406-340-570 More Info >	$433.17
13	Parking Jack Assembly 418-000-217 More Info >	$353.92
15	Bolt 301-212-253 More Info >	$2.93
17	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	$51.81
20	Mudguard Assembly - Pegasus S4 RH 506-000-014 More Info >	$554.67
21	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	$1,895.00
22	Bolt 301-216-403 More Info >	$3.85
23	Nut - Nyloc 307-216-053 More Info >	$1.02
24	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	$1,895.00
25	Bolt 301-216-603 More Info >	$3.85
26	Washer - Heavy Flat 308-160-063 More Info >	$1.65
28	Wheel Assembly - Road 416-842-620 More Info >	$726.75
29	Hose Clamp - Hydraulic Hose 408-000-037 More Info >	$3.42
31	Washer - Spring 308-100-043 More Info >	$0.18
32	Bolt 301-208-163 More Info >	$0.61
33	Operator Manual Tube - Screw Cap 450-000-073 More Info >	$45.45
34	Washer - Fender 108-031-413 More Info >	$1.10
35	Blind Rivet 213-000-004 More Info >	$1.02
36	Nut - Nyloc 307-208-053 More Info >	$0.17
37	Buffer Pad 418-840-300 More Info >	$44.82
38	Washer - Flat 308-080-013 More Info >	$0.05
39	Bolt 301-208-303 More Info >	$0.62
41	Pin - Hydraulic Cylinder 419-845-560 More Info >	$82.49
42	Heavy Washer 402-845-580 More Info >	$22.27
43	Linch Pin 203-300-700 More Info >	$2.76
44	Washer - Spring 308-080-043 More Info >	$0.12
46	Reflector - Safety Triangle 421-847-050 More Info >	$34.67
