NOTES:

Part #	Number on image	Usage Notes
412-841-010	14	For galvanised mowers use 412-841-001 RH and 412-841-011 LH
412-841-000	15	For galvanised mowers use 412-841-001 RH and 412-841-011 LH

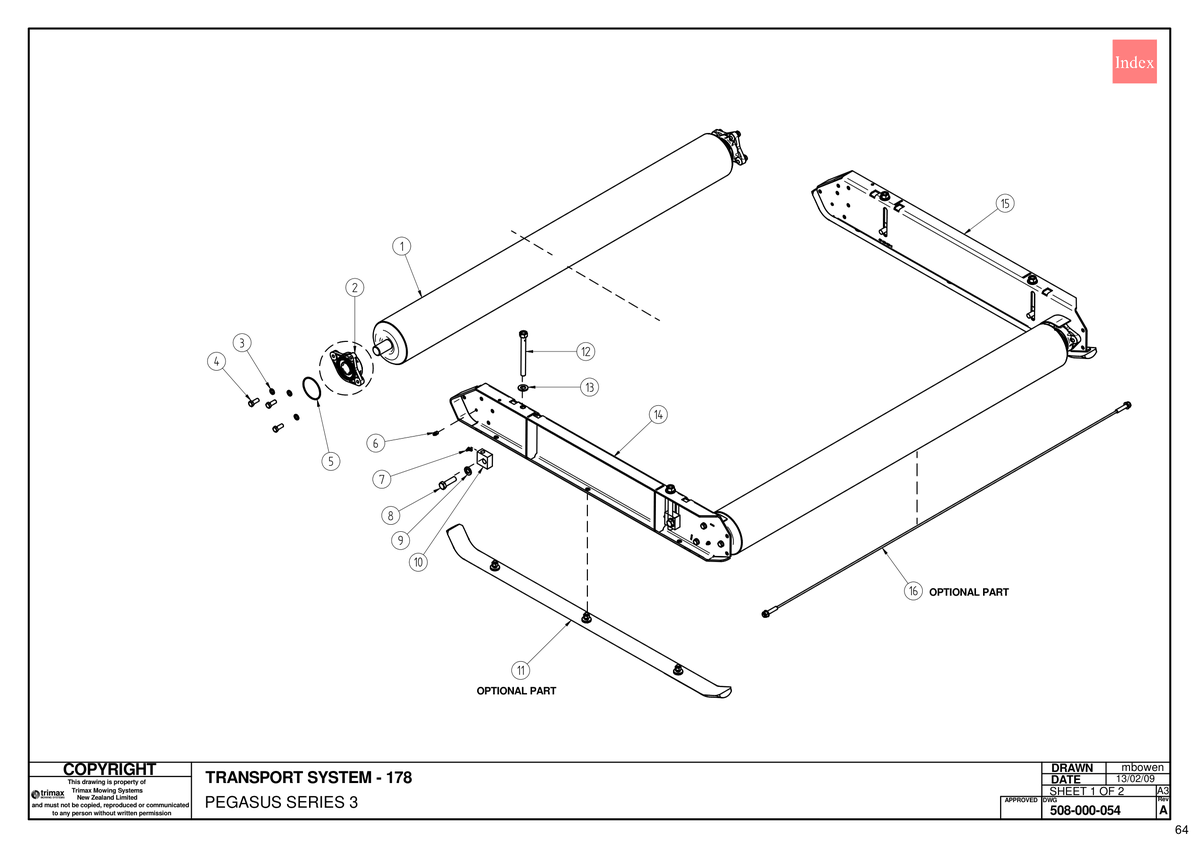

727 - Pegasus S3 - 178 TRANSPORT SYSTEM - 508-000-054

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Roller Weldment 178 414-320-020 More Info >	$930.90
2	Roller Bearing Assembly - Trimax Specification - 401-000-005 More Info >	$354.00
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
5	O Ring 450-000-055 More Info >	$4.22
6	Grease Nipple - Trimax Specification 208-442-550 More Info >	$3.06
7	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
8	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	$6.42
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
10	Height Adjuster Block 412-330-273 More Info >	Price on Request
11	Skid Assembly - Anti-Bounce 412-000-148 More Info >	$250.00
12	Height Adj. Screw 412-850-251 More Info >	Price on Request
13	Washer - Heavy Flat 308-160-063 More Info >	$1.65
14	Side Channel Weldment - DR LH Ext "S" i See notes section for usage notes on this part 412-841-010 More Info >	$665.00
15	Side Channel Weldment - DR RH Ext "S" 178 i See notes section for usage notes on this part 412-841-000 More Info >	$665.00
16	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	$80.00
