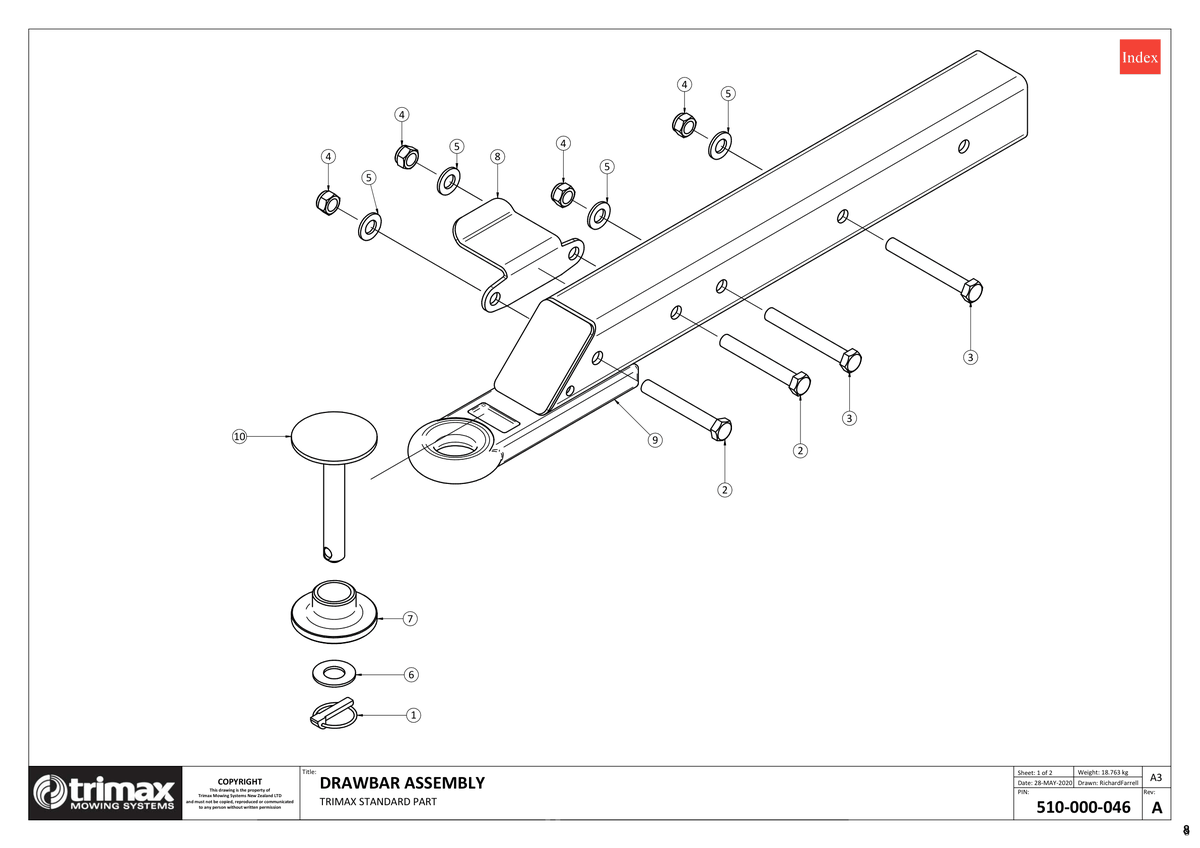

727 - Pegasus S4 - 722 - Drawbar

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
$2.76
2 Bolt - Hex Head - M16 x 120 - Trimax Specification [301-616-123] Bolt - Hex Head - M16 x 120 - Trimax Specification 301-616-123
$3.80
3 Bolt - Hex Head - M16 x 130 - Trimax Specification [301-616-133] Bolt - Hex Head - M16 x 130 - Trimax Specification 301-616-133
$10.82
4 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
$1.02
5 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
6 Washer - Heavy Flat [308-270-063] Washer - Heavy Flat 308-270-063
$6.36
7 Wear Bush - Tow Eye [402-840-130] Wear Bush - Tow Eye 402-840-130
$80.00
8 PTO Hanger - Pegasus Vulcan Snake [418-000-782] PTO Hanger - Pegasus Vulcan Snake 418-000-782
Price on Request
9 Drawbar Weldment [418-844-020] Drawbar Weldment 418-844-020
$551.65
10 Pin Weldment - Hitch - Flat Head Ø1" [419-000-050] Pin Weldment - Hitch - Flat Head Ø1" 419-000-050
$176.77
