NOTES:

Part #	Number on image	Usage Notes
406-000-084	12	PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.

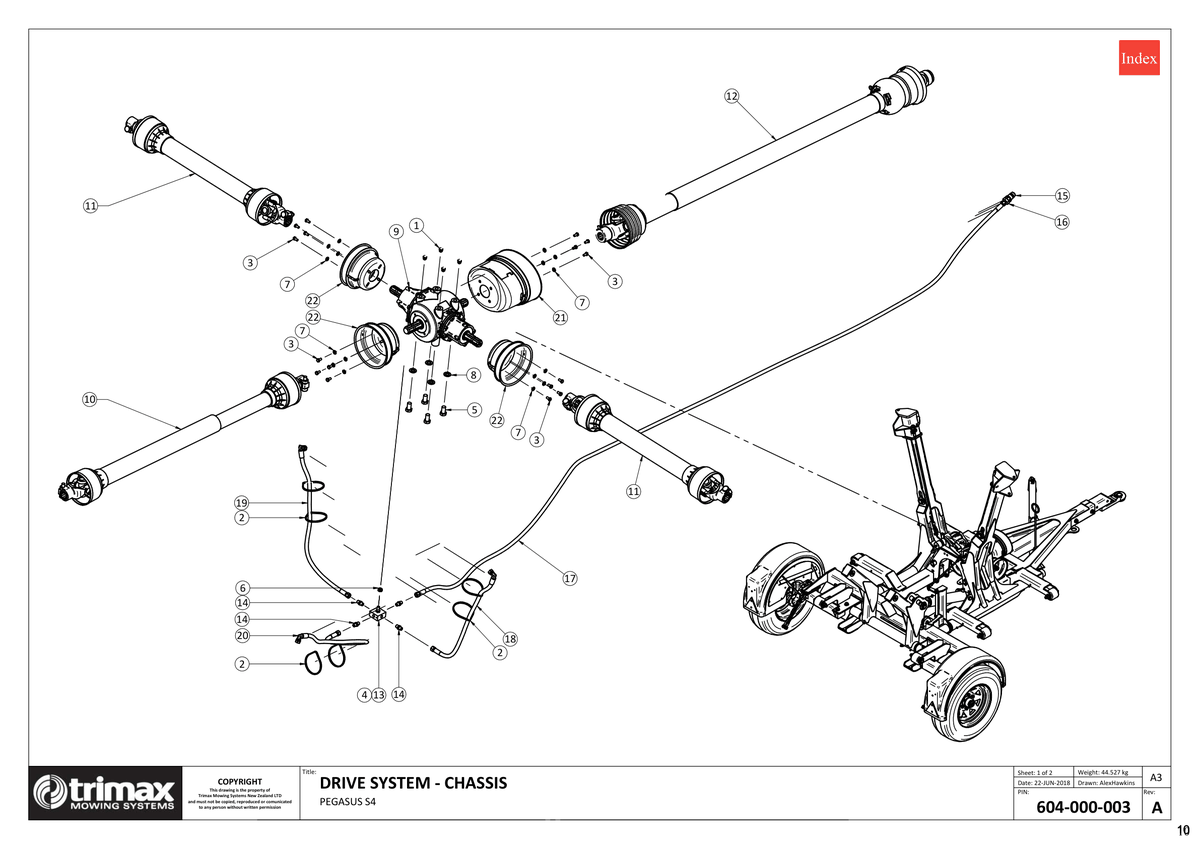

727 - Pegasus S4 - 722 - Chassis Drive System

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	Price on Request
2	Cable Tie - Black 210-900-011 More Info >	Price on Request
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
4	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	$1.61
5	Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303 More Info >	$4.03
6	Nut - Nyloc 307-210-053 More Info >	$0.57
7	Washer - Flat 308-080-016 More Info >	$0.12
8	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
10	PTO Shaft 406-340-570 More Info >	$433.00
11	PTO Shaft 406-340-590 More Info >	$434.00
12	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084	Price on Request
14	Nipple 408-447-390 More Info >	$13.57
15	Coupling 408-447-580 More Info >	$43.96
16	Nipple 408-448-280 More Info >	$9.33
18	Hose Assembly 409-448-420 More Info >	Price on Request
20	Hose Assembly 409-448-430 More Info >	Price on Request
21	PTO Cone - Wide angle 410-000-257 More Info >	$110.86
22	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
