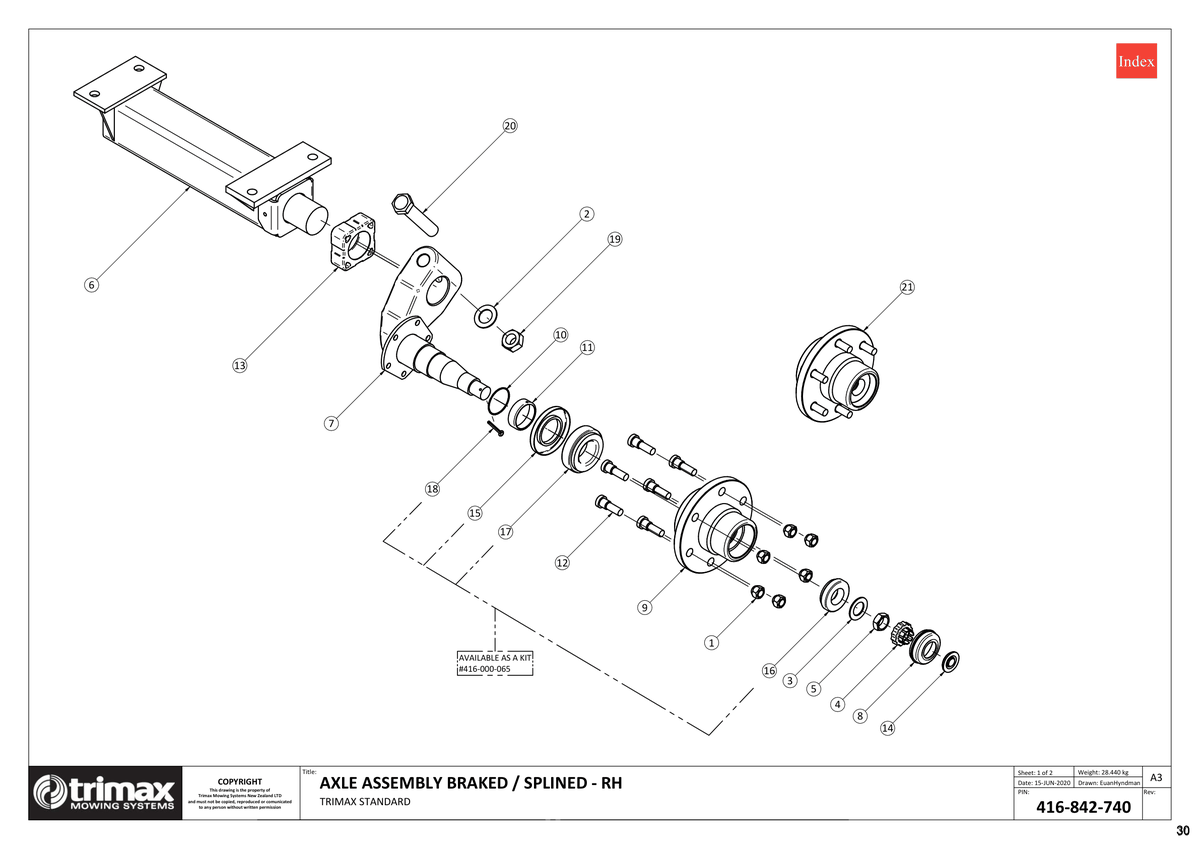

727 - Pegasus S4 - 722 - Axle Assembly

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Wheel Nut [416-842-890] Wheel Nut 416-842-890
$3.28
4 Castle Nut - Axle [416-842-840] Castle Nut - Axle 416-842-840
$7.00
6 Torsion Axle - Splined [416-842-790] Torsion Axle - Splined 416-842-790
Price on Request
7 Trailing Arm Axle Stub - RH [416-842-746] Trailing Arm Axle Stub - RH 416-842-746
Price on Request
8 Grease Cap - Wheel [416-449-015] Grease Cap - Wheel 416-449-015
$24.66
10 O-Ring - Stub Axle Sleeve [416-000-082] O-Ring - Stub Axle Sleeve 416-000-082
$5.16
11 Sleeve - Stub Axle [416-000-081] Sleeve - Stub Axle 416-000-081
$23.50
12 Stud - Turf Wheel [416-000-078] Stud - Turf Wheel 416-000-078
$16.05
13 Bushing [416-000-077] Bushing 416-000-077
$78.11
14 Plug - Grease Cap [416-000-067] Plug - Grease Cap 416-000-067
$4.70
15 Seal - Hub [416-000-064] Seal - Hub 416-000-064
$39.88
16 Bearing [401-842-810] Bearing 401-842-810
Price on Request
17 Bearing [401-842-800] Bearing 401-842-800
Price on Request
18 Split (Cotter) Pin [201-842-860] Split (Cotter) Pin 201-842-860
$3.16
19 Nut - Nyloc [107-114-173] Nut - Nyloc 107-114-173
$4.92
20 Bolt [101-114-443] Bolt 101-114-443
Price on Request
21 Hub and stud assembly - Road Wheel [416-000-079] Hub and stud assembly - Road Wheel 416-000-079
Price on Request
