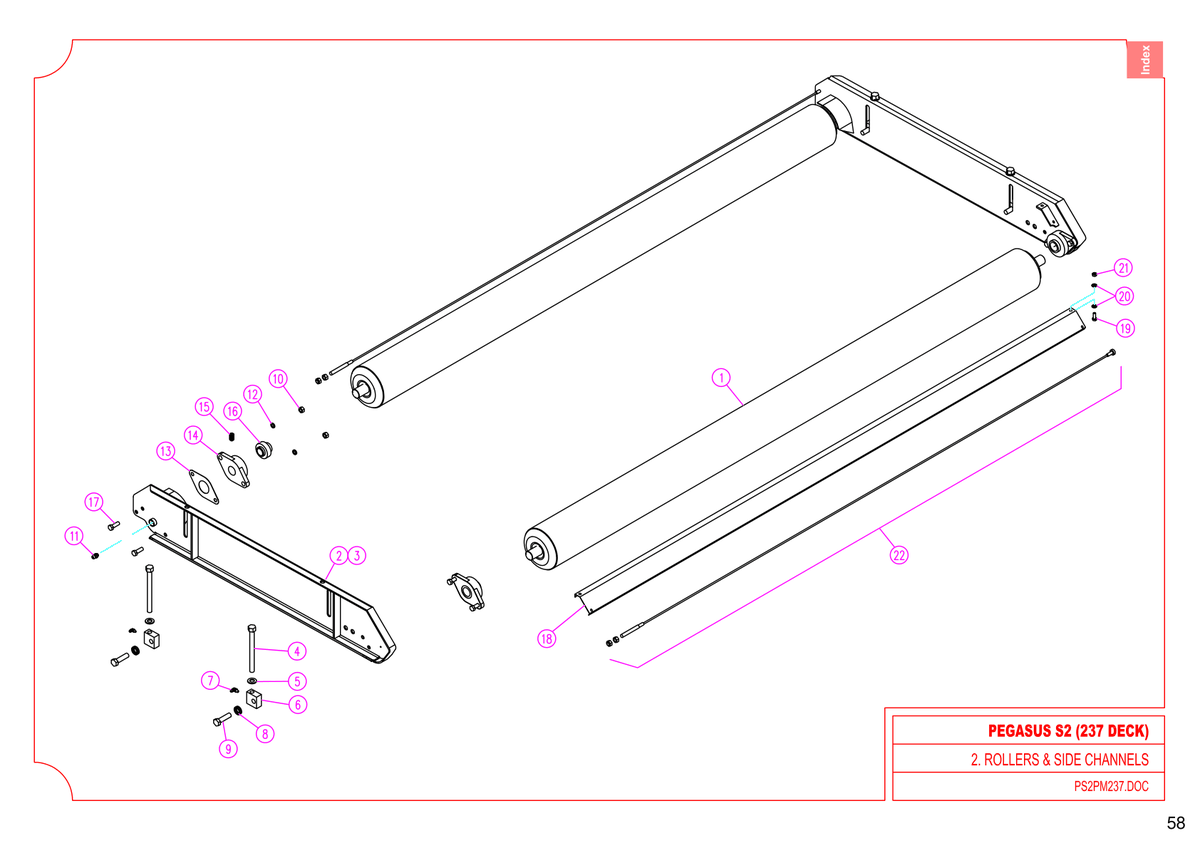

726 - Pegasus S2 - TRANSPORT SYSTEM 237 DECK

Pegasus S2 493, Pegasus S2 610

Grouped product items
No. Image Product Name Price Quantity
1 Roller Weldment 237 [414-320-023] Roller Weldment 237 414-320-023
$1,078.44
2 Side Channel Weldment - DR RH Ext "S" 178 [412-841-000] Side Channel Weldment - DR RH Ext "S" 178 412-841-000
$664.52
3 Side Channel Weldment - DR LH Ext "S" [412-841-010] Side Channel Weldment - DR LH Ext "S" 412-841-010
$664.52
4 Height Adj. Screw [412-850-251] Height Adj. Screw 412-850-251
$55.64
5 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
6 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
$86.67
7 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
8 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
9 Bolt [301-216-553] Bolt 301-216-553
$6.42
10 Nut - Plain [307-212-013] Nut - Plain 307-212-013
$0.57
11 Grease Nipple [208-442-600] Grease Nipple 208-442-600
$3.61
12 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
13 Gasket - Paper [401-020-802] Gasket - Paper 401-020-802
$6.12
15 Grub Screw [144-104-025] Grub Screw 144-104-025
$0.95
14 Bearing Kit [401-020-801] Bearing Kit 401-020-801
$92.00
17 Bolt [301-212-353] Bolt 301-212-353
$2.71
19 Bolt [301-208-203] Bolt 301-208-203
$0.90
20 Washer - Flat [308-080-013] Washer - Flat 308-080-013
$0.05
21 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
22 Scraper - Roller 237 [404-320-124] Scraper - Roller 237 404-320-124
$80.25
