NOTES:

Part #	Number on image	Usage Notes
460-000-234	30	Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit.

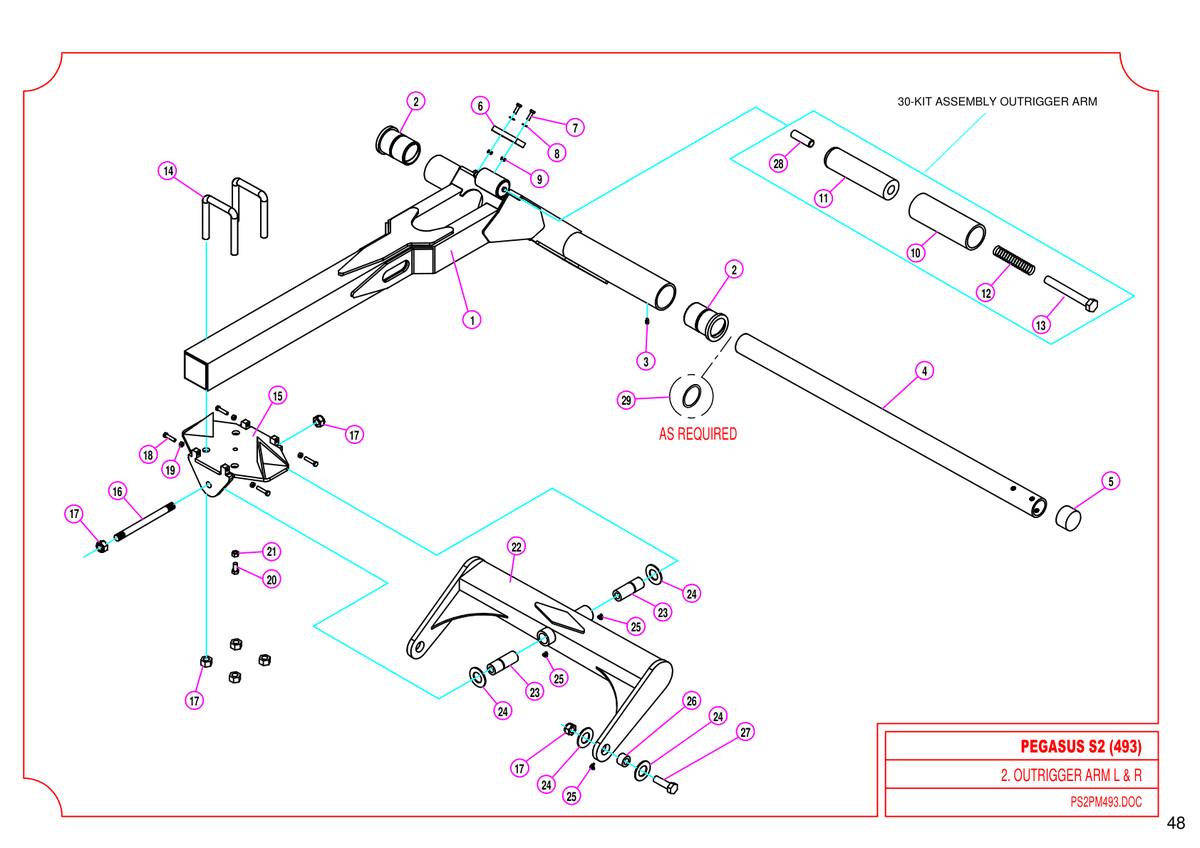

726 - Pegasus S2 - OUTRIGGER ARM L & R

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	$247.00
3	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
4	Pin - Outrigger Hinge - Side 419-840-210 More Info >	Price on Request
5	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	$8.45
6	Buffer Pad 418-840-300 More Info >	$44.82
7	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	$0.54
8	Washer - Flat 308-080-013 More Info >	$0.05
9	Nut - Nyloc 307-208-056 More Info >	$0.90
10	Bush 402-840-710 More Info >	$116.01
11	Pin - Transport Lock 419-840-700 More Info >	$198.00
12	Spring - Compression 207-840-720 More Info >	$28.71
13	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	$4.83
14	U-Bolt 215-840-400 More Info >	$111.28
15	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	$523.73
16	Pin - Pitch Pivot 419-840-450 More Info >	$50.00
17	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
18	Set Screw - c/w Nyloc Nut 306-208-353 More Info >	Price on Request
19	Nut - Plain 307-208-013 More Info >	Price on Request
20	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	$2.93
21	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
22	Side Float Beam Weldment 418-840-070 More Info >	$1,328.24
23	Sleeve - Pitch Tube 402-000-010 More Info >	$216.00
24	Thrust Washer 402-840-520 More Info >	$48.00
25	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
26	Hardened Bush 402-840-550 More Info >	$69.00
27	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	$4.82
28	Grub Screw 312-208-255 More Info >	$2.75
29	Shim 418-000-001 More Info >	$76.43
30	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	$234.24
