NOTES:

Part #	Number on image	Usage Notes
412-000-256	20	For Height indicator rod - Imperial ,Use part number 412-000-258 For Height indicator rod - Imperial ,Use part number 412-000-258
412-000-302	21	Use part number 808-000-039 - Wear skid Complete Kit for one mower Use part number 307-210-013 for plain nut and 308-100-043 Spring washer for Wear Skid - Assembly Use part number 808-000-039 - Wear skid Complete Kit for one mower Use part number 307-210-013 for plain nut and 308-100-043 Spring washer for Wear Skid - Assembly

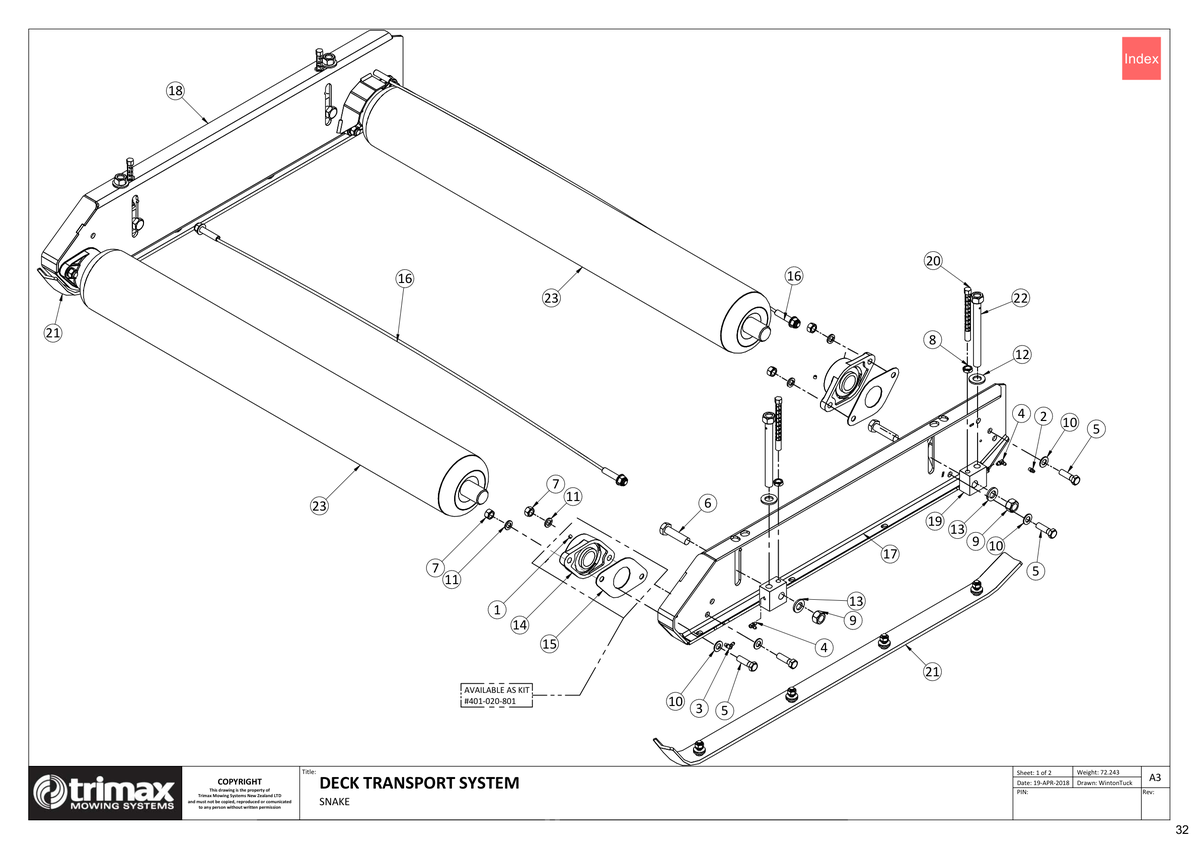

721 - Snake S1 - Deck Transport System

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Grub Screw 144-104-025 More Info >	$0.95
2	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
3	Grease Nipple - Trimax Specification 208-442-620 More Info >	$4.47
4	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
5	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
6	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	$3.85
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
8	Nut - Half 307-212-023 More Info >	$1.13
9	Nut - Plain 307-216-013 More Info >	$1.61
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
12	Washer - Heavy Flat 308-160-063 More Info >	$1.65
13	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
14	Roller Bearing Assembly - Trimax Specification 401-020-701 More Info >	$86.00
15	Gasket - Paper - Roller Bearing Housing 401-020-802 More Info >	$6.12
16	Scraper 404-000-057 More Info >	$90.95
17	Side Channel Weldment - LH Snake S1 412-000-247 More Info >	$484.15
18	Side Channel Weldment - RH 412-000-248 More Info >	$484.15
19	Height Adjuster Block 412-000-255 More Info >	$86.67
20	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	$37.45
21	Skid Assembly - Anti-Bounce Wear Skid w/ M10 Nuts & Washers - i See notes section for usage notes on this part 412-000-302 More Info >	$250.00
22	Set Screw - Hex Head - M16 x 180 - Trimax Specification 313-616-183 More Info >	$24.18
23	Roller Weldment - Inverted Dome 120 414-000-063 More Info >	$535.00
