NOTES:

Part #	Number on image	Usage Notes
401-020-201	10	Optional Sealmaster bearing and housing 401-205-001
404-320-146	27	May not be present. Available as an option.
301-216-403	28	Side channel modified 07/01/2008 to accommodate additional mounting point

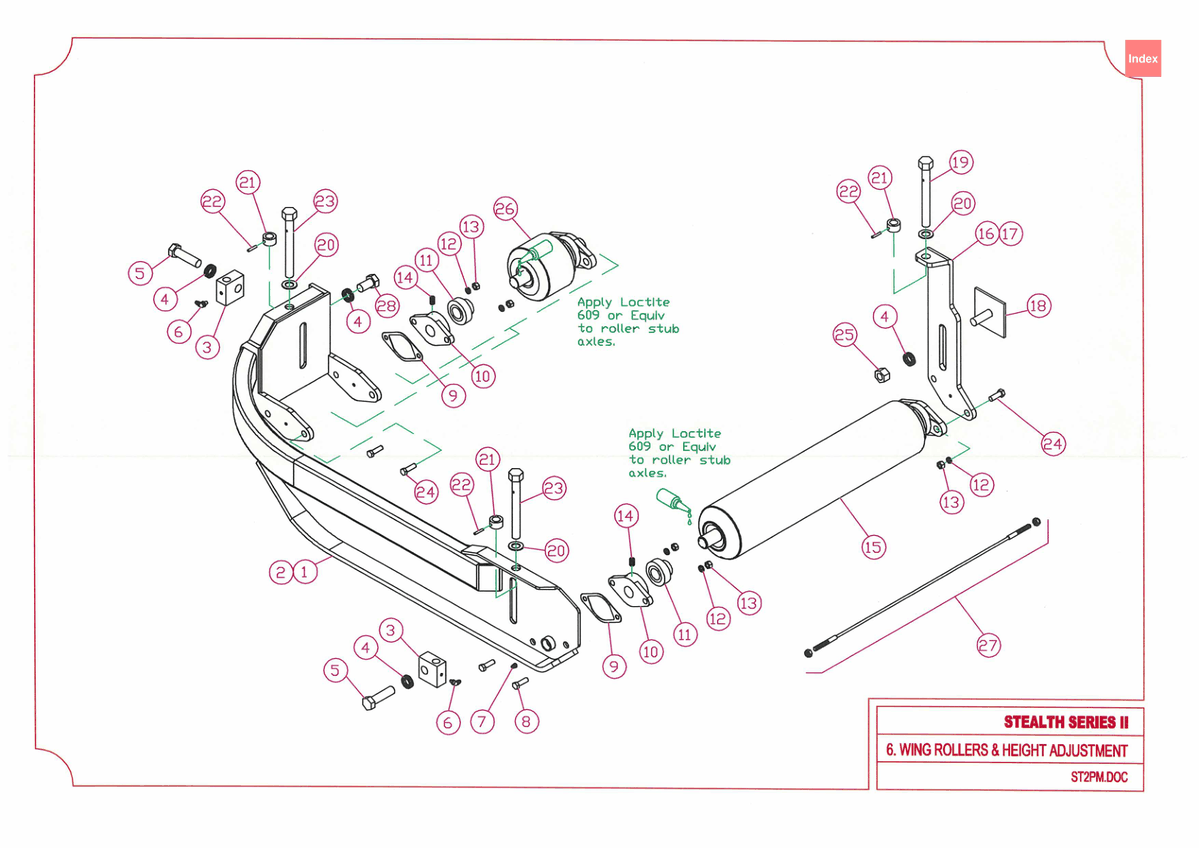

716 - Stealth S2 340 - Wing Rollers & Height Adjusters

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Side Channel Weldment - Wing LH 412-850-401 More Info >	$1,137.58
2	Side Channel Weldment - Wing RH 412-850-402 More Info >	$1,137.58
3	Height Adjuster Block 412-330-273 More Info >	$86.67
4	Washer - Nordloc 308-160-083 More Info >	$5.63
5	Bolt 301-216-553 More Info >	$6.42
6	Grease Nipple 208-442-650 More Info >	$5.89
7	Grease Nipple 208-442-600 More Info >	$3.61
8	Bolt 301-212-353 More Info >	$2.71
9	Gasket - Paper 401-020-202 More Info >	$4.49
10	Roller Bearing Kit i See notes section for usage notes on this part 401-020-201 More Info >	$53.50
12	Washer - Spring 308-120-043 More Info >	$0.45
13	Nut - Plain 307-212-013 More Info >	$0.57
14	Grub Screw 144-104-025 More Info >	$0.95
15	Roller Weldment - Wing Rear 414-320-032 More Info >	$428.00
16	Roller Mount Weldment - Wing LH Inner ST2 412-850-130 More Info >	$171.64
17	Roller Mount Weldment - Wing RH Inner ST2 412-850-120 More Info >	$171.67
18	Height Adj. Stud Weldment ST2 412-850-180 More Info >	$23.36
19	Height Adj. Screw Assy - Wing Inner w Collar/Pin ST2 412-850-240 More Info >	$103.79
20	Washer - Heavy Flat 308-160-063 More Info >	$1.65
21	Collar - Height Adjuster 412-850-260 More Info >	$36.93
22	Roll Pin 202-447-980 More Info >	$5.14
23	Height Adj. Screw Assy - Wing Outer w Collar/Pin 412-850-250 More Info >	$98.44
24	Bolt 301-212-403 More Info >	$2.93
25	Nut - Plain 307-216-013 More Info >	$1.61
26	Roller Weldment - Wing Front 414-320-031 More Info >	$211.86
27	Roller Scraper i See notes section for usage notes on this part 404-320-146 More Info >	$69.55
28	Bolt i See notes section for usage notes on this part 301-216-403 More Info >	$3.85
