NOTES:

Part #	Number on image	Usage Notes
403-850-520	9	403-850-520 is superseded by 403-000-163. Each belt tensioner has the idler pulley fitted above or below the arm. The pulley is shimmed with hardened washers to achieve the exact height. Belt alignment is critical. Drive belt tensioner part numbers 403-850-510 and 403-850-520 are obsolete and replaced by 403-000-162 and 403-000-163. Please refer to SPI114 for fittings instructions.
403-850-510	11	403-850-510 is superseded by 403-000-162. Each belt tensioner has the idler pulley fitted above or below the arm. The pulley is shimmed with hardened washers to achieve the exact height. Belt alignment is critical. Drive belt tensioner part numbers 403-850-510 and 403-850-520 are obsolete and replaced by 403-000-162 and 403-000-163. Please refer to SPI114 for fittings instructions.

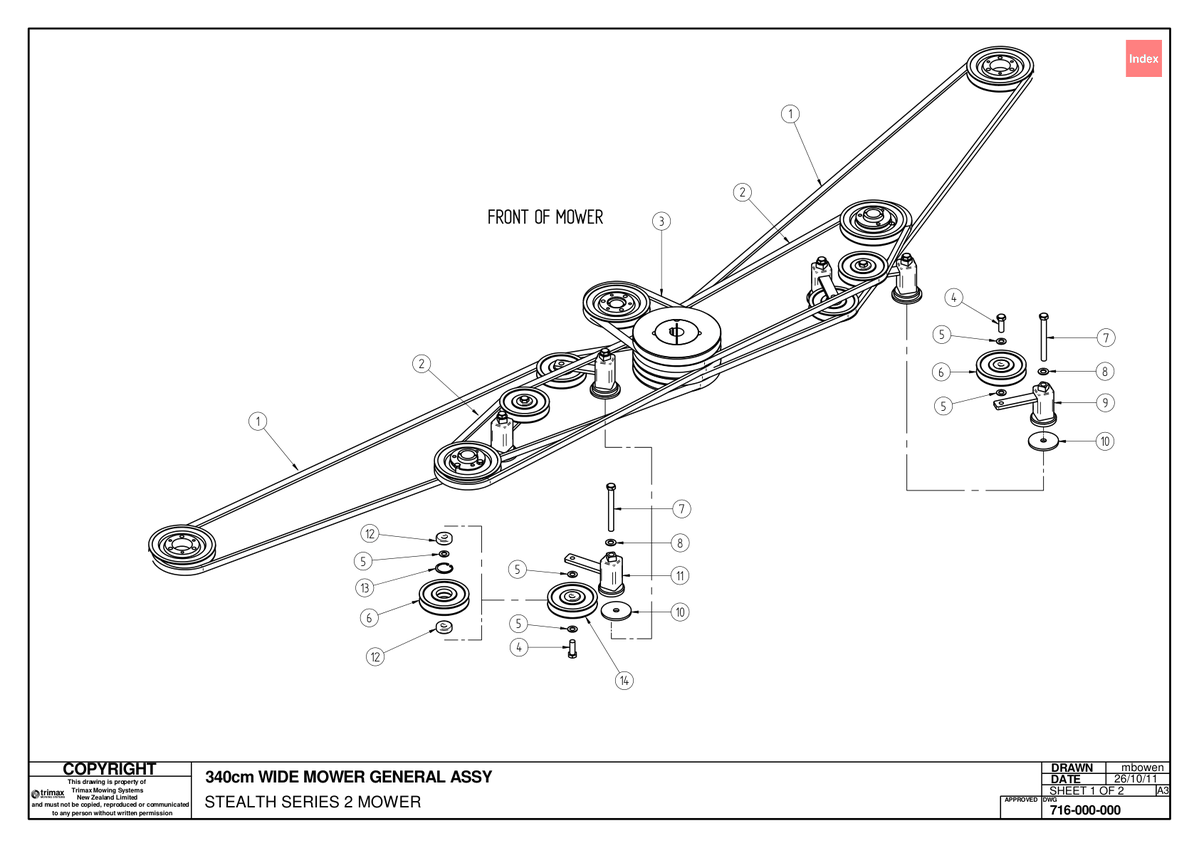

716 - Stealth S2 340 - Vee Belts & Idlers

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Vee Belt - Trimax Specification 404-041-280 More Info >	$73.83
2	Vee Belt - Trimax Specification 404-040-740 More Info >	$45.37
3	Vee Belt - Trimax Specification 404-040-360 More Info >	$24.50
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
5	Washer - Flat 108-071-413 More Info >	$2.88
6	Pulley - Idler 403-360-110 More Info >	$63.89
7	Bolt - Hex Head - M12 x 140 - Trimax Specification 301-612-143 More Info >	$4.30
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
9	Belt Tensioner i See notes section for usage notes on this part 403-850-520 More Info >	$278.20
10	Spacer 402-000-009 More Info >	$11.80
11	Belt Tensioner i See notes section for usage notes on this part 403-850-510 More Info >	$278.20
12	Bearing - Trimax Specification - 401-021-900 More Info >	$18.65
13	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
14	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
