NOTES:

Part #	Number on image	Usage Notes
401-020-801	12	Optional Sealmaster bearing and housing 401-207-001
404-320-145	23	May not be present. Available as an option.

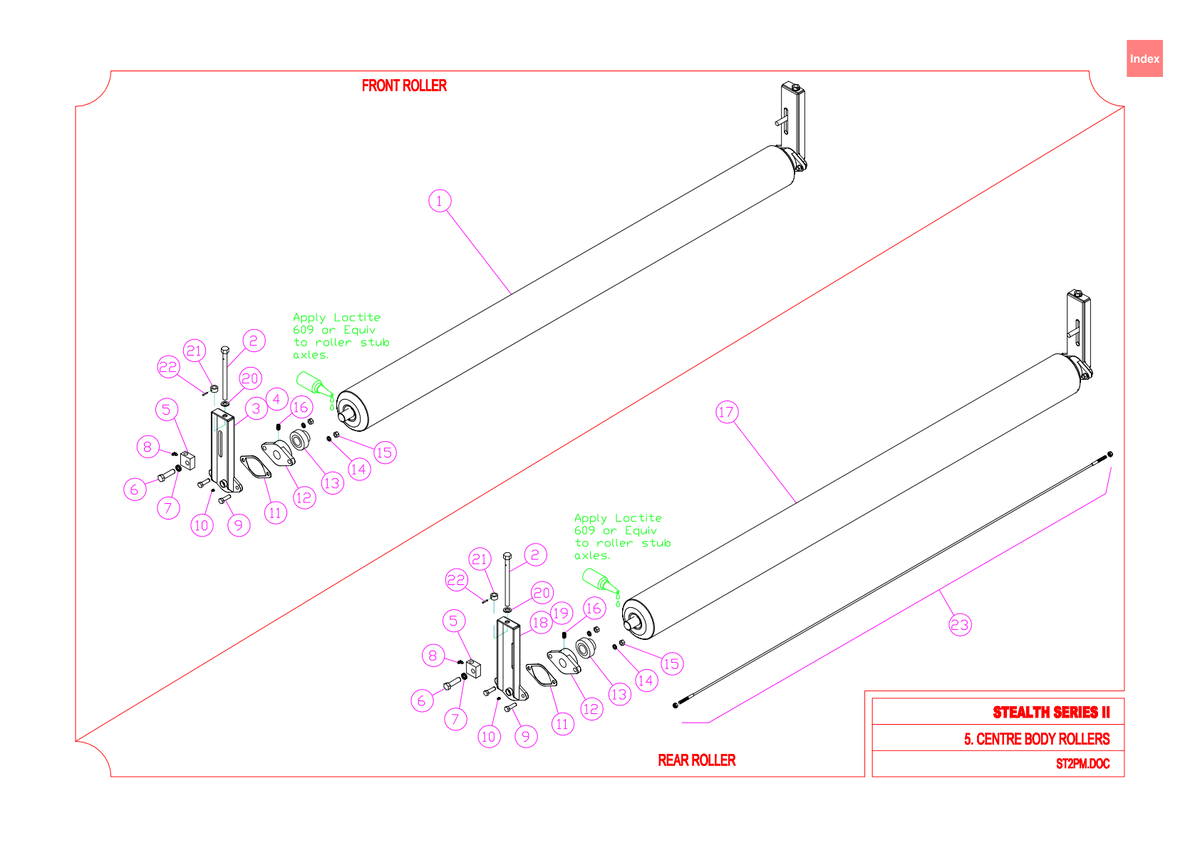

716 - Stealth S2 340 - Centre Body Rollers

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Roller Weldment - Body Front 414-320-024 More Info >	$942.67
2	Height Adj. Screw Assy - Centre Body w Collar/Pin 245mm ST2 412-850-220 More Info >	$49.10
4	Roller Mount Weldment - Centre Body LH Rear/RH Front ST2 412-850-110 More Info >	$175.70
5	Height Adjuster Block 412-330-273 More Info >	$86.67
6	Bolt 301-216-653 More Info >	$6.76
7	Washer - Nordloc 308-160-083 More Info >	$5.63
8	Grease Nipple 208-442-650 More Info >	$5.89
9	Bolt 301-212-403 More Info >	$2.93
10	Grease Nipple 208-442-600 More Info >	$3.61
11	Gasket - Paper 401-020-802 More Info >	$6.12
12	Bearing Kit i See notes section for usage notes on this part 401-020-801 More Info >	$92.00
14	Washer - Spring 308-120-043 More Info >	$0.45
15	Nut - Plain 307-212-013 More Info >	$0.57
16	Grub Screw 144-104-025 More Info >	$0.95
17	Roller Weldment - Body Rear 414-320-025 More Info >	$777.16
20	Washer - Heavy Flat 308-160-063 More Info >	$1.65
21	Collar - Height Adjuster 412-850-260 More Info >	$36.93
22	Roll Pin 202-447-980 More Info >	$5.14
23	Roller Scraper i See notes section for usage notes on this part 404-320-145 More Info >	$69.55
