NOTES:

Part #	Number on image	Usage Notes
401-021-860	6	Refer to item 6 of the Body Assembly parts listing.

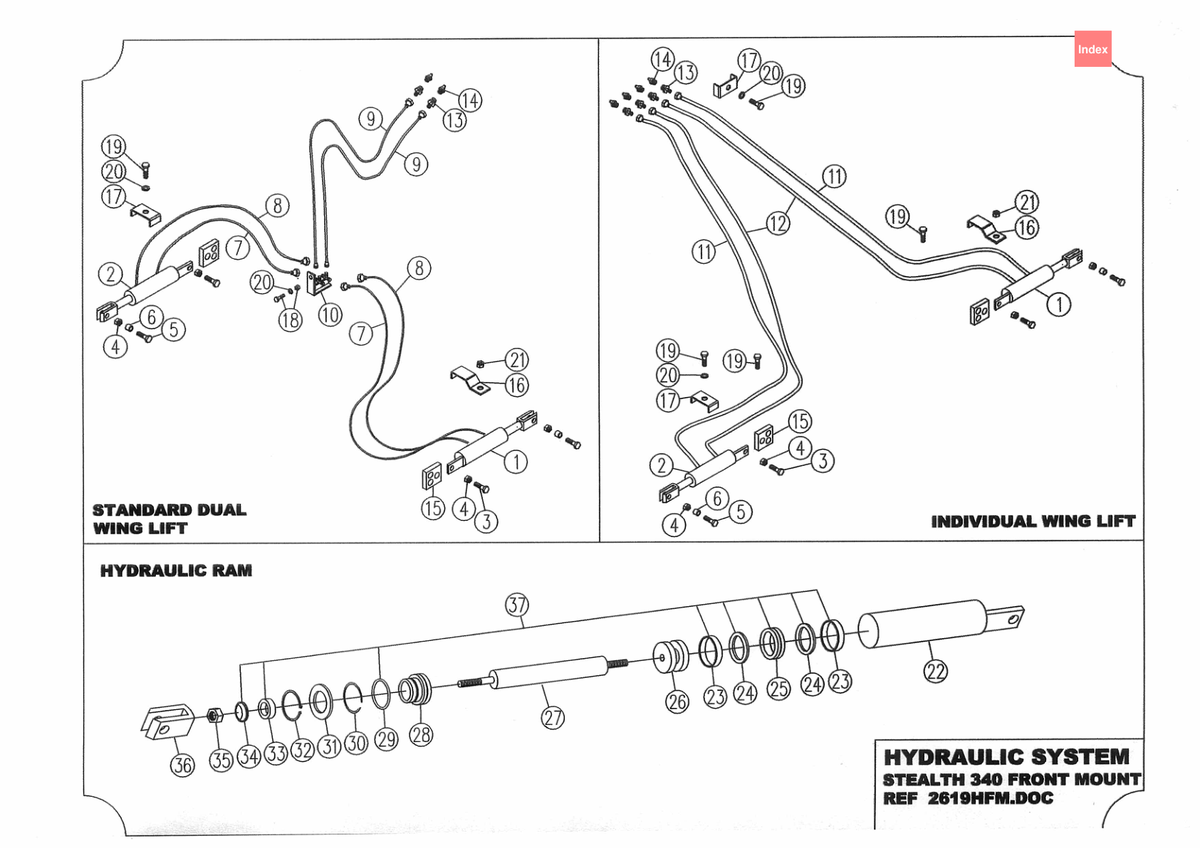

715 - 340 Stealth S1 FM - Hydraulic Circuit Individual Lift

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
1	Lift Ram Assembly 409-448-004 More Info >	$835.28
2	Lift Ram Assembly 409-448-003 More Info >	$835.28
3	Bolt 301-220-803 More Info >	$14.19
4	Nut - Plain 307-220-013 More Info >	$1.39
5	Bolt 305-220-803 More Info >	$10.24
6	Bush - Inner Ring i See notes section for usage notes on this part 401-021-860 More Info >	$42.80
7	Hose Assembly 409-448-250 More Info >	Price on Request
8	Hose Assembly 409-448-260 More Info >	$31.60
13	Nipple 408-448-280 More Info >	$9.33
14	Coupling 408-447-580 More Info >	$43.96
15	Damper 408-448-010 More Info >	$19.05
16	Hose Retainer RH 417-448-020 More Info >	Price on Request
17	Clamp 408-448-030 More Info >	Price on Request
18	Bolt 301-208-253 More Info >	$0.54
19	Bolt 301-208-403 More Info >	$1.28
20	Washer - Spring 308-080-043 More Info >	$0.12
21	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
27	Spear 408-448-141 More Info >	$122.77
35	Nut - Plain 107-112-013 More Info >	Price on Request
36	Clevis 408-448-150 More Info >	$200.87
37	Seal Kit 408-448-094 More Info >	$168.94
