NOTES:

Part # Number on image Usage Notes
412-000-610 31
  • Use part number 412-152-420 for Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2
401-000-047 40
  • Item number 40 & 41 are only used on black steel rim configuration.
402-000-155 41
  • Item number 40 & 41 are only used on black steel rim configuration.
204-820-192 42
  • Item number 42 43 & 44 are only used on white steel rim configuration.
401-000-012 43
  • Item number 42 43 & 44 are only used on white steel rim configuration.
416-000-097 44
  • Item number 42 43 & 44 are only used on white steel rim configuration.

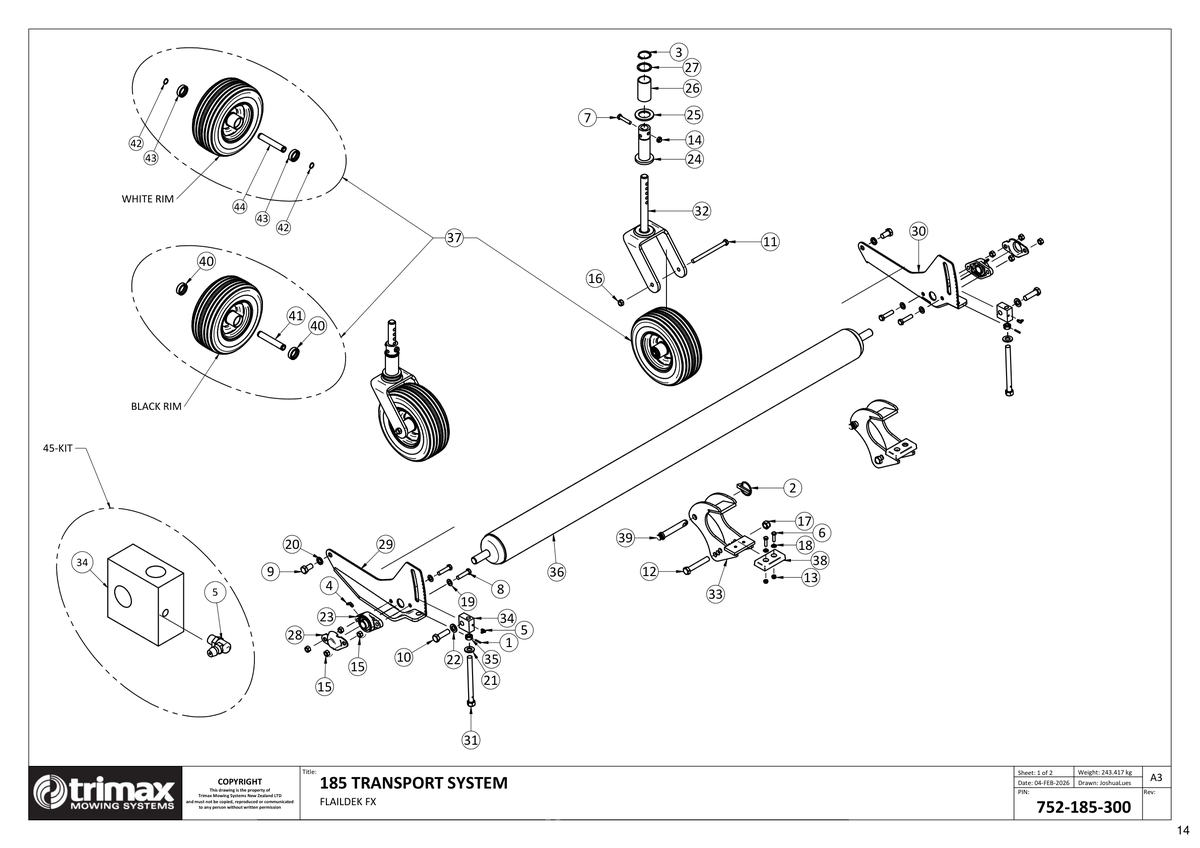

711 - Flaildek FX 185 - Transport System

FlailDek FX 185

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
$5.14
2 Linch Pin [203-300-700] Linch Pin 203-300-700
$2.76
3 Circlip/Snap Ring - External [204-820-402] Circlip/Snap Ring - External 204-820-402
$9.30
4 Grease Nipple [208-442-620] Grease Nipple 208-442-620
$4.47
5 Grease Nipple [208-442-650] Grease Nipple 208-442-650
$5.89
6 Bolt [301-208-303] Bolt 301-208-303
$0.62
7 Bolt [301-210-503] Bolt 301-210-503
$1.22
8 Bolt [301-212-503] Bolt 301-212-503
$3.16
9 Bolt [301-216-303] Bolt 301-216-303
$4.03
10 Bolt [301-216-553] Bolt 301-216-553
$6.42
11 Bolt [301-612-163] Bolt 301-612-163
$6.73
12 Bolt [301-616-103] Bolt 301-616-103
$5.93
13 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
$0.90
14 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
15 Nut - Plain [307-212-013] Nut - Plain 307-212-013
$0.57
16 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
$0.67
17 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
$1.02
18 Washer - Flat [308-080-016] Washer - Flat 308-080-016
$0.12
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
20 Washer - Spring [308-160-043] Washer - Spring 308-160-043
$0.67
21 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
$1.65
22 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
$5.63
23 Bearing Assembly [401-150-300] Bearing Assembly 401-150-300
$45.00
24 Pivot Boss [402-152-110] Pivot Boss 402-152-110
$205.85
25 Thrust Washer [402-152-120] Thrust Washer 402-152-120
$25.95
26 Pivot Bush [402-152-130] Pivot Bush 402-152-130
$114.21
27 Retaining Washer [402-152-140] Retaining Washer 402-152-140
$26.78
28 Cap [410-464-071] Cap 410-464-071
$34.50
29 Trailing Arm Weldment LH [412-000-380] Trailing Arm Weldment LH 412-000-380
$268.00
30 Trailing Arm Weldment RH [412-000-381] Trailing Arm Weldment RH 412-000-381
$268.00
31 Set Screw [412-000-610] Set Screw i See notes section for usage notes on this part 412-000-610
$33.59
32 Castor Fork Weldment - 5 hole [412-152-560] Castor Fork Weldment - 5 hole 412-152-560
$402.66
33 Linkage Adjuster Weldment [412-154-200] Linkage Adjuster Weldment 412-154-200
$202.73
34 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
$86.67
35 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
$36.93
36 Roller Weldment 185 [414-140-010] Roller Weldment 185 414-140-010
$513.60
37 Wheel - Semi Pneumatic - 11 X 4 X 5 [416-000-158] Wheel - Semi Pneumatic - 11 X 4 X 5 416-000-158
Price on Request
38 Pad [417-153-140] Pad 417-153-140
$38.34
39 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
$14.76
40 Bearing 6204-2RS [401-000-047] Bearing 6204-2RS i See notes section for usage notes on this part 401-000-047
$21.13
41 Sleeve - Castor Axle Ø13 X Ø24 X 120 [402-000-155] Sleeve - Castor Axle Ø13 X Ø24 X 120 i See notes section for usage notes on this part 402-000-155
$100.41
42 Circlip/Snap Ring - External [204-820-192] Circlip/Snap Ring - External i See notes section for usage notes on this part 204-820-192
$4.84
43 Bearing [401-000-012] Bearing i See notes section for usage notes on this part 401-000-012
$33.38
44 Sleeve - Castor Axle [416-000-097] Sleeve - Castor Axle i See notes section for usage notes on this part 416-000-097
$124.12
