NOTES:

Part #	Number on image	Usage Notes
402-000-141	8	Taper lock pulley and bush use introduced from serial number onwards : NZ : 752-185-301-1055935\nGB : 711-185-253-3002095
402-060-670	9	Taper lock pulley and bush use introduced from serial number onwards : NZ : 752-185-301-1055935\nGB : 711-185-253-3002095
403-000-144	10	Taper lock pulley and bush use introduced from serial number onwards : NZ : 752-185-301-1055935\nGB : 711-185-253-3002095
403-361-140	13	Taper lock pulley and bush use introduced from serial number onwards : NZ : 752-185-301-1055935\nGB : 711-185-253-3002095
404-040-430	14	All mower manufactured prior to the above serial number use P/N 404-040-422 vee belt
405-000-100	15	For extension without keyway use p/n: 405-200-126
405-200-090	16	Use P/n 405-200-090 for John Deere and Iseki power units only

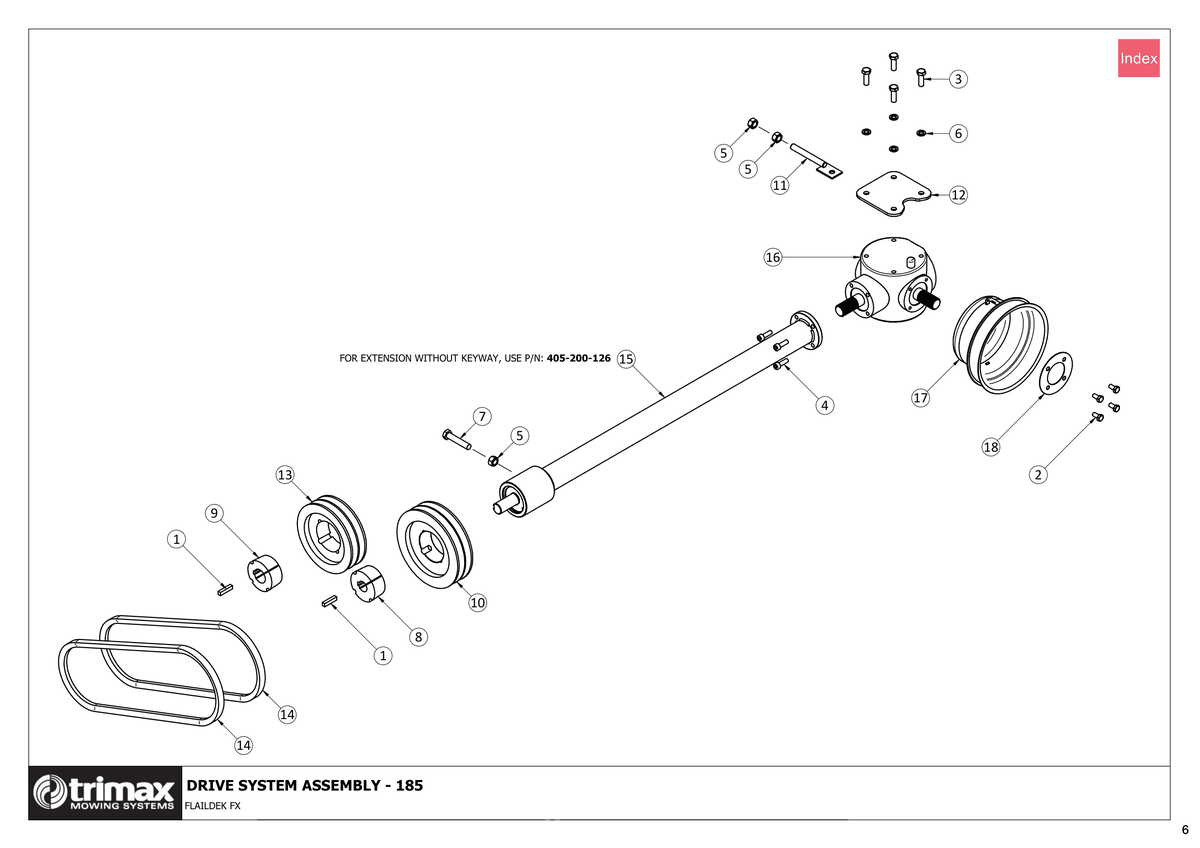

711 - Flaildek FX 185 - Drive System - Taper Lock Pulley

FlailDek FX 185

Grouped product items
No.	Product Name	Price
1	Key 205-000-004	$11.91
2	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
3	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
4	Cap Screw - Socket Head - M8 x 25 - Trimax Specification 303-208-255 More Info >	Price on Request
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
6	Washer - Spring 308-100-043 More Info >	$0.18
7	Set Screw 313-212-603 More Info >	$1.82
8	Bush - Taperlock - Trimax Specification i See notes section for usage notes on this part 402-000-141	$16.03
9	Bush - Taper Lock i See notes section for usage notes on this part 402-060-670 More Info >	$20.61
10	Pulley - Taperlock - Trimax Specification i See notes section for usage notes on this part 403-000-144	$68.12
11	Tension Adjuster 403-154-210 More Info >	$13.36
12	Slide Plate 403-154-250 More Info >	$13.04
13	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140 More Info >	$62.66
14	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-430 More Info >	$30.00
15	Extension Shaft - Assembly - 185 - Keyway i See notes section for usage notes on this part 405-000-100 More Info >	$937.00
16	John Deere Gearbox i See notes section for usage notes on this part 405-200-090 More Info >	$1,700.42
17	Cone 410-440-409 More Info >	$44.94
