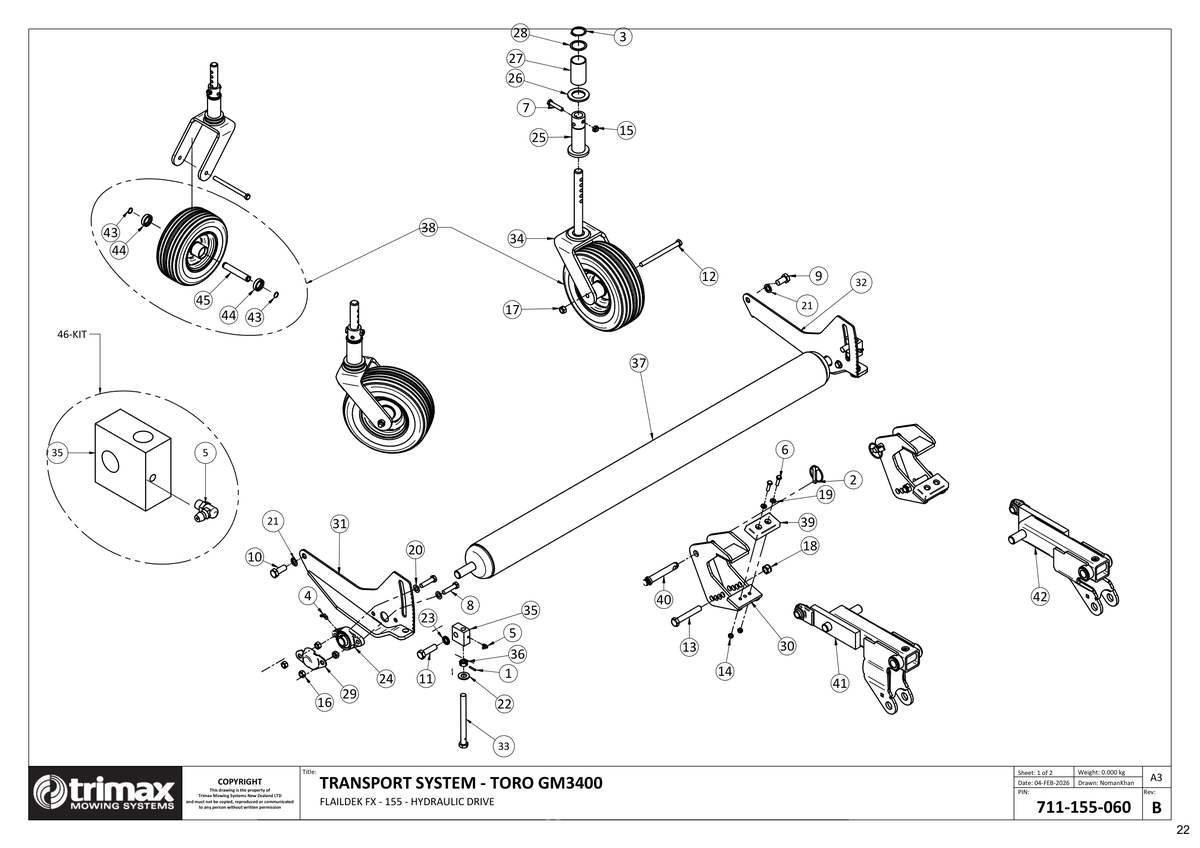

711 - Flaildek FX 155 - Transport System - Toro GM3400

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
3	Circlip/Snap Ring - External 204-820-402 More Info >	$9.30
4	Grease Nipple 208-442-620 More Info >	$4.47
5	Grease Nipple 208-442-650 More Info >	$5.89
6	Bolt 301-208-303 More Info >	$0.62
7	Bolt 301-210-503 More Info >	$1.22
8	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	$3.16
9	Bolt 301-216-303 More Info >	$4.03
10	Bolt 301-216-403 More Info >	$3.85
11	Bolt 301-216-553 More Info >	$6.42
12	Bolt 301-612-163 More Info >	$6.73
13	Bolt 301-616-103 More Info >	$5.93
14	Nut - Nyloc 307-208-056 More Info >	$0.90
15	Nut - Nyloc 307-210-053 More Info >	$0.57
16	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
17	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
18	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
19	Washer - Flat 308-080-016 More Info >	$0.12
20	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
21	Washer - Spring 308-160-043 More Info >	$0.67
22	Washer - Heavy Flat 308-160-063 More Info >	$1.65
23	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
24	Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300 More Info >	$45.00
25	Pivot Boss 402-152-110 More Info >	$205.85
26	Thrust Washer 402-152-120 More Info >	$25.95
27	Pivot Bush 402-152-130 More Info >	$114.21
28	Retaining Washer 402-152-140 More Info >	$26.78
29	Cap - Bearing Protector Cap - FL205 Housing 410-464-071 More Info >	$34.50
30	Linkage Adjuster Weldment 412-000-244 More Info >	Price on Request
31	Trailing Arm Weldment LH 412-000-380 More Info >	$268.00
32	Trailing Arm Weldment RH 412-000-381 More Info >	$268.00
33	Set Screw 412-000-610	$33.59
34	Castor Fork Weldment - 5 hole 412-152-560 More Info >	$402.66
35	Height Adjuster Block 412-330-273 More Info >	$86.67
36	Collar - Height Adjuster 412-850-260 More Info >	$36.93
37	Roller Weldment 155 414-152-302 More Info >	$460.10
38	Wheel - Semi Pneumatic 416-000-076 More Info >	$267.50
39	Pad 417-153-140 More Info >	$38.34
40	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
41	Lift Arm Assembly - LH Inc. Bushes 420-000-080 More Info >	Price on Request
42	Lift Arm Assembly - RH Inc. Bushes 420-000-081 More Info >	Price on Request
43	Circlip/Snap Ring - External 204-820-192 More Info >	$4.84
44	Bearing 401-000-012 More Info >	$33.38
45	Sleeve - Castor Axle 416-000-097 More Info >	$124.12
