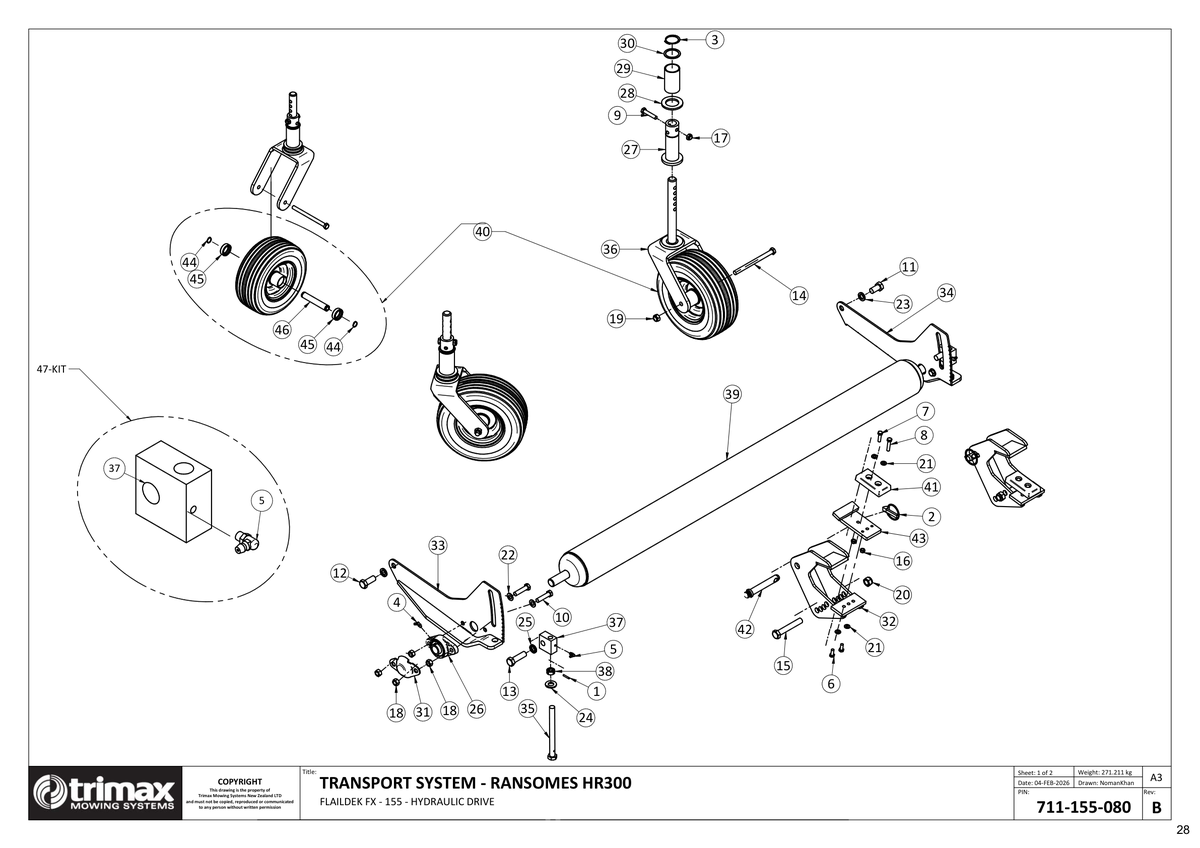

711 - Flaildek FX 155 - Transport System - Ransomes HR300

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
3	Circlip/Snap Ring - External 204-820-402 More Info >	$9.30
4	Grease Nipple 208-442-620 More Info >	$4.47
5	Grease Nipple 208-442-650 More Info >	$5.89
6	Bolt 301-208-203 More Info >	$0.90
7	Bolt 301-208-303 More Info >	$0.62
8	Bolt 301-208-403 More Info >	$1.28
9	Bolt 301-210-503 More Info >	$1.22
10	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	$3.16
11	Bolt 301-216-303 More Info >	$4.03
12	Bolt 301-216-403 More Info >	$3.85
13	Bolt 301-216-553 More Info >	$6.42
14	Bolt 301-612-163 More Info >	$6.73
15	Bolt 301-616-103 More Info >	$5.93
16	Nut - Nyloc 307-208-056 More Info >	$0.90
17	Nut - Nyloc 307-210-053 More Info >	$0.57
18	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
19	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
20	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
21	Washer - Flat 308-080-016 More Info >	$0.12
22	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
23	Washer - Spring 308-160-043 More Info >	$0.67
24	Washer - Heavy Flat 308-160-063 More Info >	$1.65
25	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
26	Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300 More Info >	$45.00
27	Pivot Boss 402-152-110 More Info >	$205.85
28	Thrust Washer 402-152-120 More Info >	$25.95
29	Pivot Bush 402-152-130 More Info >	$114.21
30	Retaining Washer 402-152-140 More Info >	$26.78
31	Cap - Bearing Protector Cap - FL205 Housing 410-464-071 More Info >	$34.50
32	Linkage Adjuster Weldment 412-000-244 More Info >	Price on Request
33	Trailing Arm Weldment LH 412-000-380 More Info >	$268.00
34	Trailing Arm Weldment RH 412-000-381 More Info >	$268.00
35	Set Screw 412-000-610	$33.59
36	Castor Fork Weldment - 5 hole 412-152-560 More Info >	$402.66
37	Height Adjuster Block 412-330-273 More Info >	$86.67
38	Collar - Height Adjuster 412-850-260 More Info >	$36.93
39	Roller Weldment 155 414-152-302 More Info >	$460.10
40	Wheel - Semi Pneumatic 416-000-076 More Info >	$267.50
41	Pad 417-153-140 More Info >	$38.34
42	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
43	Linkage Adaptor Weldment 420-000-084 More Info >	Price on Request
44	Circlip/Snap Ring - External 204-820-192 More Info >	$4.84
45	Bearing 401-000-012 More Info >	$33.38
46	Sleeve - Castor Axle 416-000-097 More Info >	$124.12
