NOTES:

Part #	Number on image	Usage Notes
402-060-210	9	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt. Last serial number recorded for Biloc Pulleys and bushes used 611-135-200-1036949, all mowers manufactured after this serial number will be fitted with Taper pulley/bush, see the other drive system listing for part numbers.
402-060-240	10	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt. Last serial number recorded for Biloc Pulleys and bushes used 611-135-200-1036949, all mowers manufactured after this serial number will be fitted with Taper pulley/bush, see the other drive system listing for part numbers.
403-360-300	13	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt. Last serial number recorded for Biloc Pulleys and bushes used 611-135-200-1036949, all mowers manufactured after this serial number will be fitted with Taper pulley/bush, see the other drive system listing for part numbers.
403-360-500	14	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt. Last serial number recorded for Biloc Pulleys and bushes used 611-135-200-1036949, all mowers manufactured after this serial number will be fitted with Taper pulley/bush, see the other drive system listing for part numbers.
404-040-430	15	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt. Last serial number recorded for Biloc Pulleys and bushes used 611-135-200-1036949, all mowers manufactured after this serial number will be fitted with Taper pulley/bush, see the other drive system listing for part numbers.
405-200-090	18	For John Deer and Iseki Power Units Only

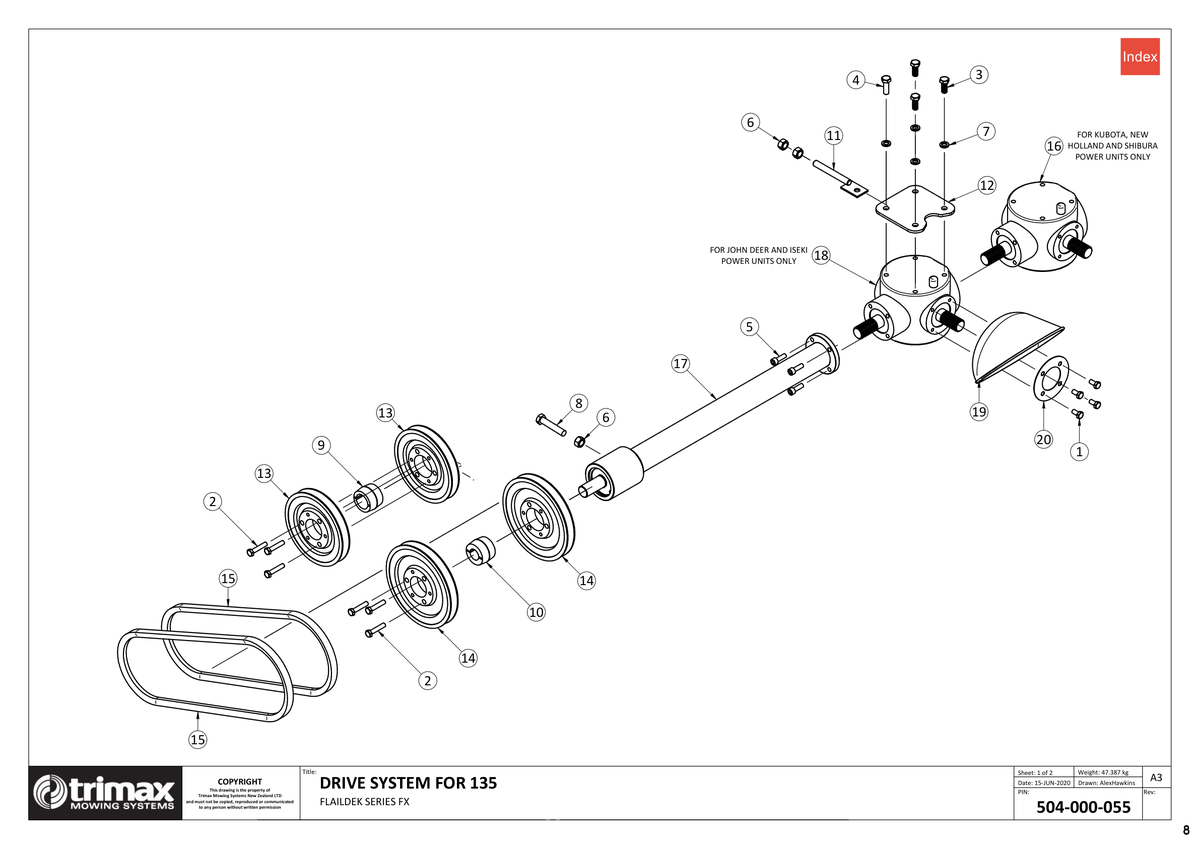

711 - Flaildek FX 135 - Drive System

FlailDek FX 135

Grouped product items
No.	Product Name	Price
1	Bolt 301-208-163 More Info >	$0.61
2	Bolt 301-208-403 More Info >	$1.28
3	Bolt 301-210-253 More Info >	$0.57
4	Bolt 301-210-303 More Info >	$0.86
5	Cap Screw 303-208-255 More Info >	Price on Request
6	Nut - Plain 307-212-013 More Info >	$0.57
7	Washer - Spring 308-100-043 More Info >	$0.18
8	Set Screw 313-212-603 More Info >	$1.82
9	Bush i See notes section for usage notes on this part 402-060-210 More Info >	$31.79
10	Bush i See notes section for usage notes on this part 402-060-240 More Info >	$32.86
11	Tension Adjuster 403-154-210 More Info >	$13.36
12	Slide Plate 403-154-250 More Info >	$13.04
13	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	$80.25
14	Pulley i See notes section for usage notes on this part 403-360-500 More Info >	$65.67
15	Vee Belt i See notes section for usage notes on this part 404-040-430 More Info >	$30.00
17	135 Extension Assembly 405-200-086 More Info >	$812.33
18	John Deere Gearbox i See notes section for usage notes on this part 405-200-090 More Info >	$1,700.42
19	Cone 410-440-380 More Info >	$89.11
