NOTES:

Part #	Number on image	Usage Notes
414-480-480	30	Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780	46	The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-900	47	The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-920	54	The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.

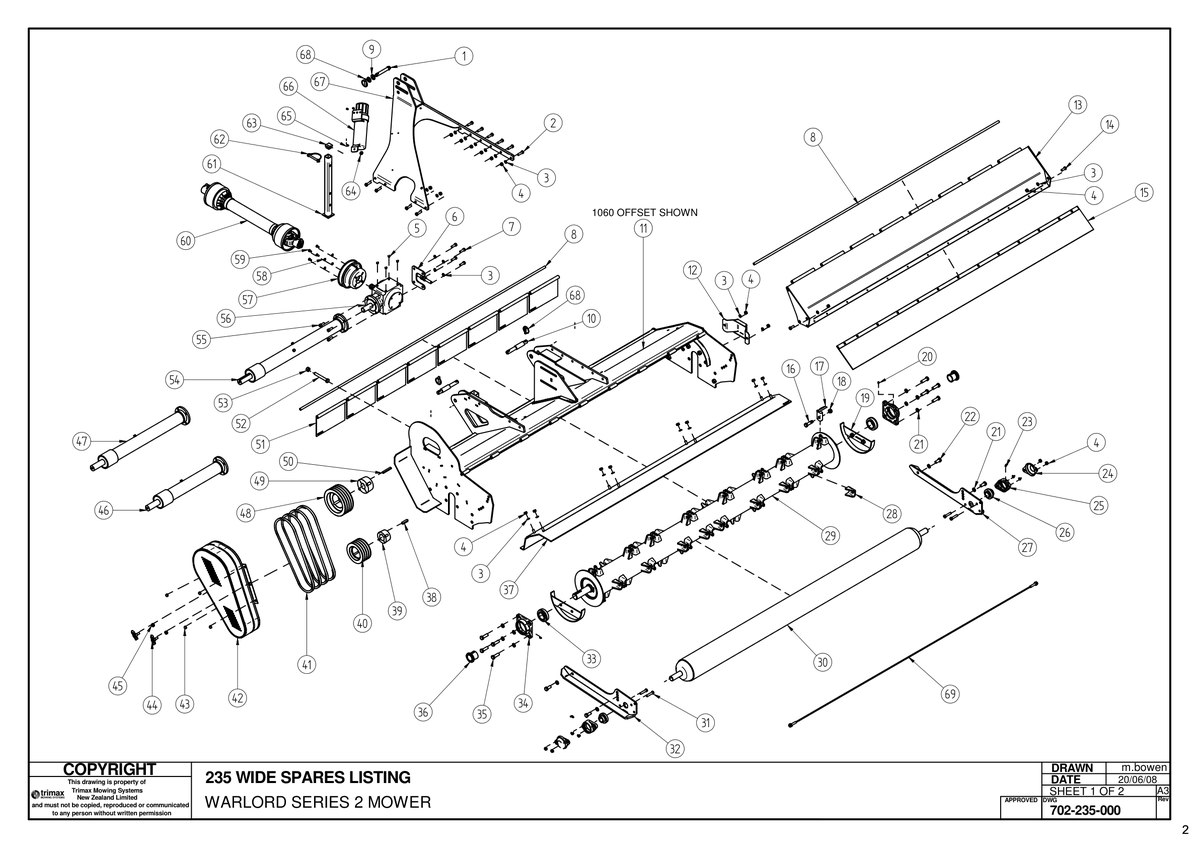

702 Warlord S2 235 - 235 Wide Spares Listing

Warlord S2 235

Grouped product items
No.	Product Name	Price
1	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
2	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	$2.93
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
5	Blanking Plug - M12 209-900-012 More Info >	$0.45
6	Adjuster 417-000-428 More Info >	$85.60
7	Bolt 301-212-353 More Info >	$2.71
8	Hinge Pin 235 417-000-190 More Info >	$39.68
9	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
10	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
12	Bearing Guard 410-460-302 More Info >	$148.00
13	Rear Flap Assembly 417-480-281 More Info >	Price on Request
14	Bolt 301-212-303 More Info >	$2.36
16	Bolt 305-216-805 More Info >	$16.05
17	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	$42.80
18	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
19	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	$108.69
20	Grease Nipple - 1/4" Short 208-442-600 More Info >	$3.61
21	Washer - Spring 308-160-043 More Info >	$0.67
22	Bolt 301-216-353 More Info >	$3.64
23	Grease Nipple 208-442-620 More Info >	$4.47
24	Cap 410-464-072 More Info >	$36.38
25	Bearing Housing 401-020-800 More Info >	$17.12
26	Bearing 401-020-700 More Info >	$56.92
27	Trailing Arm Weldment - RH 412-000-128 More Info >	$238.21
28	Flail Lug 411-480-610 More Info >	$40.66
29	Rotor 415-480-580 More Info >	Price on Request
30	Roller Weldment 235 i See notes section for usage notes on this part 414-480-480 More Info >	$1,064.65
31	Bolt 301-212-553 More Info >	$2.78
32	Trailing Arm Weldment - LH 412-000-129 More Info >	$238.21
33	Bearing 401-021-210 More Info >	$86.67
34	Bearing Housing 401-021-220 More Info >	$64.20
35	Bolt 301-216-503 More Info >	$5.63
36	Sleeve - Taper 401-021-230 More Info >	$38.52
37	Body 417-000-494 More Info >	$1,028.00
38	Key - 14x9mm (Trimax Specification) 205-425-920 More Info >	$15.17
39	Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730 More Info >	$52.38
40	Pulley - Taper Lock 403-361-180 More Info >	$127.85
41	Vee Belt 404-040-512 More Info >	$78.11
42	Belt Guard Weldment - RH Offset 410-480-440 More Info >	$715.21
43	Button - Anti Rattle 209-446-360 More Info >	$7.70
44	Drop Latch - Anti-loose 423-080-400 More Info >	$24.60
45	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
46	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	$898.80
47	Extension Assembly i See notes section for usage notes on this part 405-201-900 More Info >	$496.48
48	Pulley - Taper Lock 403-361-270 More Info >	$224.52
49	Bush - Taper Lock - 40mm (Trimax Specification) 402-060-710 More Info >	$70.96
50	Key - 12x8mm (Trimax Specification) 405-425-910 More Info >	$12.72
51	Front Flap Weldment 417-480-320 More Info >	$56.76
52	Set Screw 313-616-123 More Info >	$17.43
53	Nut - Plain 307-216-013 More Info >	$1.61
54	Extension Assembly i See notes section for usage notes on this part 405-201-920 More Info >	$517.43
55	Cap Screw 303-212-305 More Info >	$3.61
56	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
57	Cone 410-440-400 More Info >	$30.44
58	Washer - Flat 308-080-013 More Info >	$0.05
59	Bolt 301-208-163 More Info >	$0.61
60	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	$555.65
61	Front Stand Weldment 413-480-660 More Info >	$88.98
62	Pin 406-346-410 More Info >	$6.33
63	Cap - Tube Insert Square 209-480-661 More Info >	$19.90
64	Washer - Fender 108-031-413 More Info >	$1.10
65	Blind Rivet 213-000-004 More Info >	$1.02
66	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	$45.45
67	Headstock 417-000-459 More Info >	Price on Request
68	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
69	Roller Scraper 404-480-483 More Info >	$75.00
