NOTES:

Part # Number on image Usage Notes
414-480-460 26
  • Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780 52
  • The Warlord 175 Series 2 is available in 2 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780 extensions. Refer to the offset chart for specific measurements.

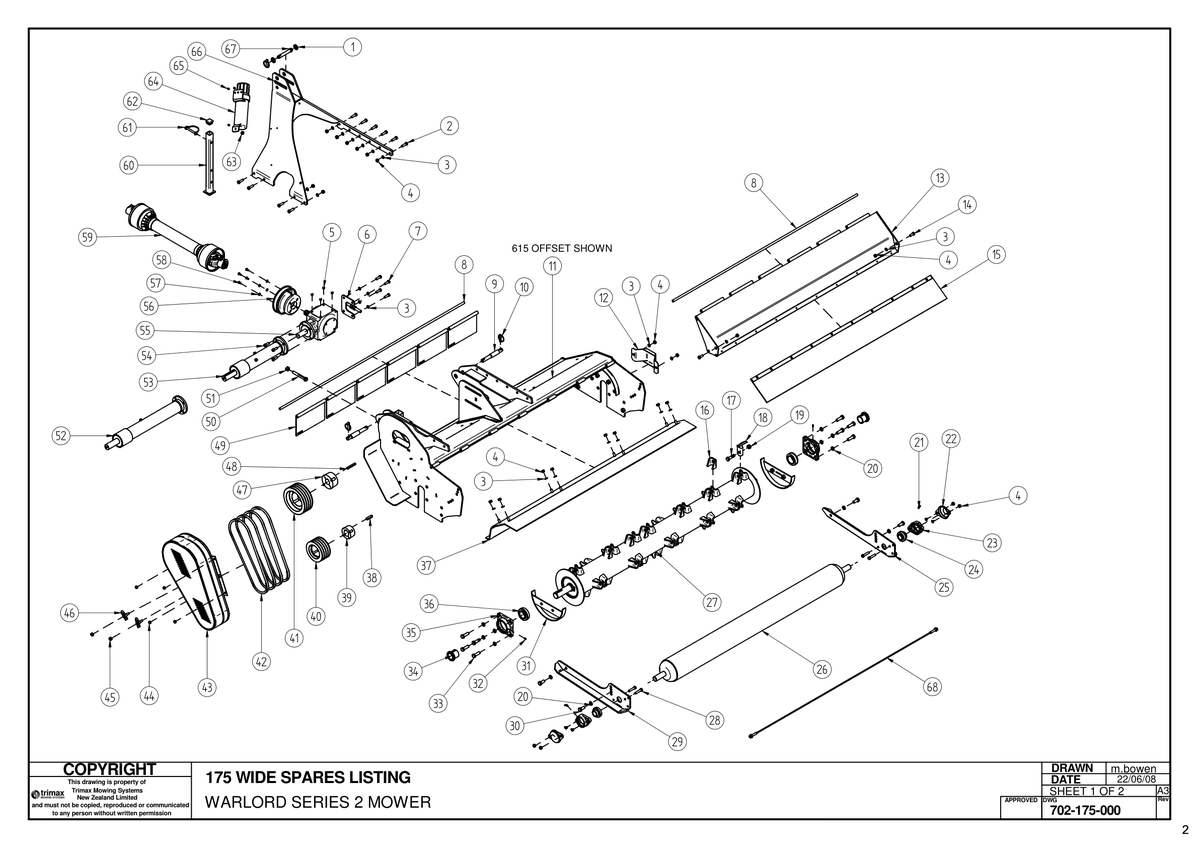

702 Warlord S2 175 - 175 Wide Spares Listing

Warlord S2 175

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
$1.02
2 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
$2.93
3 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
$0.45
4 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
$0.57
5 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
$0.45
6 Adjuster [417-000-428] Adjuster 417-000-428
$85.60
7 Bolt [301-212-353] Bolt 301-212-353
$2.71
8 Hinge Pin 175 [417-000-186] Hinge Pin 175 417-000-186
$30.08
9 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
$29.29
10 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
$2.76
12 Bearing Guard [410-460-302] Bearing Guard 410-460-302
$148.00
13 Rear Flap Weldment HD 175 [417-480-261] Rear Flap Weldment HD 175 417-480-261
Price on Request
14 Bolt [301-212-303] Bolt 301-212-303
$2.36
15 Safety Flap Assembly - Warlord 175 UK Only [506-000-038] Safety Flap Assembly - Warlord 175 UK Only 506-000-038
$180.21
16 Flail Lug [411-480-610] Flail Lug 411-480-610
$40.66
17 Bolt [305-216-805] Bolt 305-216-805
$16.05
18 Flail - Spring Steel Flail - Warlord - Trimax Specification - [411-160-200] Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200
$42.80
19 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
$1.02
20 Washer - Spring [308-160-043] Washer - Spring 308-160-043
$0.67
21 Grease Nipple [208-442-620] Grease Nipple 208-442-620
$4.47
22 Cap [410-464-072] Cap 410-464-072
$36.38
23 Bearing Housing [401-020-800] Bearing Housing 401-020-800
$17.12
24 Bearing [401-020-700] Bearing 401-020-700
$56.92
25 Trailing Arm Weldment - RH [412-000-128] Trailing Arm Weldment - RH 412-000-128
$238.21
26 Roller Weldment 175 [414-480-460] Roller Weldment 175 i See notes section for usage notes on this part 414-480-460
$850.65
27 Rotor [415-480-560] Rotor 415-480-560
Price on Request
28 Bolt [301-212-553] Bolt 301-212-553
$2.78
29 Trailing Arm Weldment - LH [412-000-129] Trailing Arm Weldment - LH 412-000-129
$238.21
30 Bolt [301-216-353] Bolt 301-216-353
$3.64
31 Half Ring Lower Weldment - Rotor (M16 Captive Nuts) [417-480-331] Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331
$108.69
32 Grease Nipple - 1/4" Short [208-442-600] Grease Nipple - 1/4" Short 208-442-600
$3.61
33 Bolt [301-216-503] Bolt 301-216-503
$5.63
34 Sleeve - Taper [401-021-230] Sleeve - Taper 401-021-230
$38.52
35 Bearing Housing [401-021-220] Bearing Housing 401-021-220
$64.20
36 Bearing [401-021-210] Bearing 401-021-210
$86.67
37 Body [417-000-493] Body 417-000-493
$771.52
38 Key - 14x9mm (Trimax Specification) [205-425-920] Key - 14x9mm (Trimax Specification) 205-425-920
$15.17
39 Bush - Taper Lock - 45mm (Trimax Specification) [402-060-730] Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730
$52.38
40 Pulley - Taper Lock [403-361-180] Pulley - Taper Lock 403-361-180
$127.85
41 Pulley - Taper Lock [403-361-270] Pulley - Taper Lock 403-361-270
$224.52
42 Vee Belt [404-040-512] Vee Belt 404-040-512
$78.11
43 Belt Guard Weldment - RH Offset [410-480-440] Belt Guard Weldment - RH Offset 410-480-440
$715.21
44 Button - Anti Rattle [209-446-360] Button - Anti Rattle 209-446-360
$7.70
45 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
$0.67
46 Drop Latch - Anti-loose [423-080-400] Drop Latch - Anti-loose 423-080-400
$24.60
47 Bush - Taper Lock - 40mm (Trimax Specification) [402-060-710] Bush - Taper Lock - 40mm (Trimax Specification) 402-060-710
$70.96
48 Key - 12x8mm (Trimax Specification) [405-425-910] Key - 12x8mm (Trimax Specification) 405-425-910
$12.72
49 Front Flap Weldment [417-480-320] Front Flap Weldment 417-480-320
$56.76
50 Set Screw [313-616-123] Set Screw 313-616-123
$17.43
51 Nut - Plain [307-216-013] Nut - Plain 307-216-013
$1.61
52 Extension Shaft Assembly - Gearbox [405-201-780] Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780
$898.80
54 Cap Screw [303-212-305] Cap Screw 303-212-305
$3.61
55 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
$1,712.00
56 Cone [410-440-400] Cone 410-440-400
$30.44
57 Washer - Flat [308-080-013] Washer - Flat 308-080-013
$0.05
58 Bolt [301-208-163] Bolt 301-208-163
$0.61
59 PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) [406-340-840] PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840
$555.65
60 Front Stand Weldment [413-480-660] Front Stand Weldment 413-480-660
$88.98
61 Pin [406-346-410] Pin 406-346-410
$6.33
62 Cap - Tube Insert Square [209-480-661] Cap - Tube Insert Square 209-480-661
$19.90
63 Washer - Fender [108-031-413] Washer - Fender 108-031-413
$1.10
64 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
$45.45
65 Blind Rivet [213-000-004] Blind Rivet 213-000-004
$1.02
66 Headstock [417-000-459] Headstock 417-000-459
Price on Request
67 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
$14.76
68 Roller Weldment - HD 175 [414-480-463] Roller Weldment - HD 175 414-480-463
$1,492.65
